Automaitc Sleeve Sealer Shrink Packing Machine (Straight Line Infeed Conveyor)

Fully automatic feeding, sealing,
and cutting, shrink integrated packaging
PLC programmable control system
Special durable alloy sealing knife
Double internal air circulation shrinkage furnace

Get A Quote

Automaitc Sleeve Sealer Shrink Packing Machine (Straight Line Infeed Conveyor)

RX-880+RT-6040

RX-1000+RT-8060

Model	RX-880 Sealing & Cutting Machine
Sealing Type	Sleeve Sealer
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	8-25 Packs per Minute (Depends on Product Size)
Sealing Height	350MM
Packing Width	720MM
Film Type	PE Film(30-100 Microns)
Max Film Roll Size	700mm (Width) X 280mm (Outer Diameter)
Working Height	780-850 MM
Sealing Machine Dimensions	Depends on Product Size
Sealing Machine Weight	Depends on Product Size
Power	1.5KW
Sealing Blade Width	720MM
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material	Carbon Steel

Model	RT-6040 Shrink Tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	22KW
Tunnel Oven Size	1500600400MM
Working Height	780-850MM
Machine Material	Carbon Steel/Stainless Steel
Tunnel Machine Dimensions	30109201800MM

Model	RX-1000 Sealing & Cutting Machine
Sealing Type	Sleeve Sealer
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	8-25 Packs per Minute (Depends on Product Size)
Sealing Height	450MM
Packing Width	1000MM
Film Type	PE Film(30-100 Microns)
Max Film Roll Size	980mm (Width) X 280mm (Outer Diameter)
Working Height	780-850 MM
Sealing Machine Dimensions	Depends on Product Size
Sealing Machine Weight	Depends on Product Size
Power	2.5KW
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material	Carbon Steel

Model	RT-8060 Shrink Tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	22KW
Tunnel Oven Size	2000800600MM
Working Height	780-850MM
Machine Material	Carbon Steel/Stainless Steel
Tunnel Machine Dimensions	30109201800MM

Get A Quote

Advantages	RYMACH	Others
1. Control Component	Siemens touch screen and PLC, with fast response speed, strong anti-interference ability, and support for multilingual switching.	Domestic Brand
2. Sealing Cutter	Teflon-coated steel knife, firmly sealed without cracking, an anti-sticking knife.	An ordinary carbon steel knife is easy to stick and has a short lifespan.
3. Electrical Components	Relays, AC contactors, etc., are made by Schneider, with long service life and low failure rate.	Use the domestic Chint brand.
6. After-Sale Service	1 year warranty,lifetime maintenance; Online technical training+remote diagnosis;Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Product Overview

Fully automatic feeding, sealing and cutting, shrink integrated packaging, compact machine structure with high efficiency and save space.

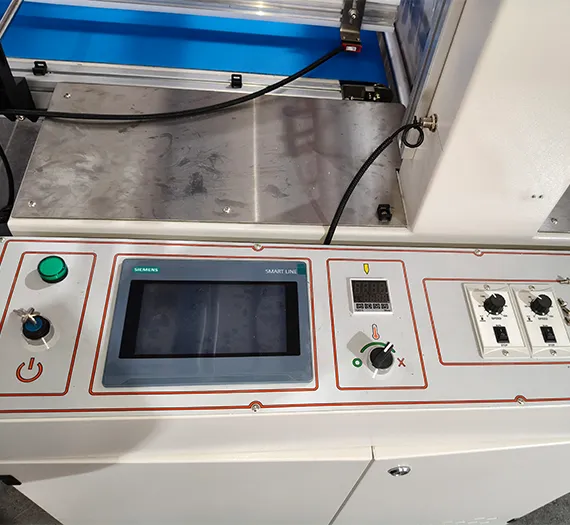

Touch screen and PLC programmable control system are adopted, which are easy to operate and highly automatic.

Machine infeed conveyor can be connected with other production lines.

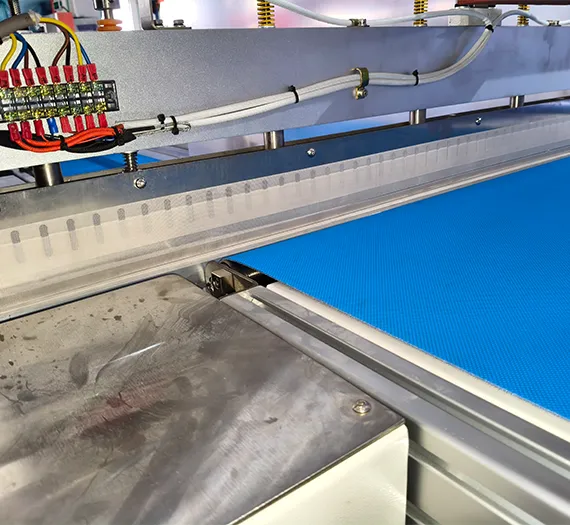

Special durable alloy sealing knife with anti-adhesive Teflon coating, makes the cutter sealing firm and have a better thermal conductivity.

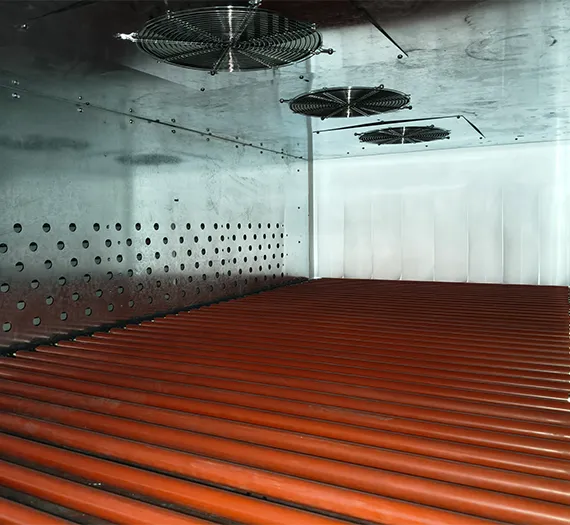

Double internal air circulation shrinkage furnace can ensure the products have a beautiful shrinkage effect, saving energy and electricity.

What products fit this sleeve wrapper?

Double-layer up&down film sealing structure, designed for collective packing: bottled water case, cans bundle, beer carton, daily chemical grouped goods for multi-piece bulk wrapping; the pillow machine is for single small items.

Production speed & output capacity?

Standard:12-15packs/min, available to connect automatic carton loading & palletizing line.

Compatible shrink film?

Mainly PE heavy-duty shrink film(30~100μm)

Total power & customizable export voltage?

Total power: RX-880+RT-6040: 23.1kW, RX-1000+RT-8060: 34.5kW. standard 220V 1-phase power for sealing and cutting machine, 380V 3-phase power for shrink tunnel; CE certificate provided for customs clearance.

Free sample test & customization lead time?

Free sample test in the factory; customized modification:30 working days, in-stock machine delivery within 7 days.

Auxiliary equipment required after delivery?

Clean compressed air at 0.5 MPa required; our technician provides 1~2 days of on-site installation & operator training; optional feeding conveyor & limiting baffle.

Changeover time for different carton sizes?

3-5 mins for same-series size changes; PLC touchscreen saves multiple parameter recipes to adjust the film frame.

Film bulges with trapped air after shrinking?

1. Add a pin roller to punch exhaust holes in the film.
2. Slow down feeding speed;
3. Raise front tunnel temperature for full air exhaust.

Wrinkled loose wrapping film?

Low tunnel temp or over-fast feeding→raise temp/reduce speed; uneven film roller tension→adjust tension spring; oversized film→switch narrower, matched PE roll.

Film runs off track & uneven sealing edge?

1. Fix the film roll at the center.
2. Adjust left-right tension.
3. Straighten carton limiting fence.
4. Recalibrate photo eye position & sensitivity.

Seam splits/burnt or cutter sticky with film?

Split seal: increase sealing temp & air cylinder pressure; Burnt seal: lower temp or speed up machine; Sticky cutter: replace worn Teflon anti-stick tape.

Cutting the blade damages the carton accidentally?

Adjust the cutter lifting height screw; straighten the feeding guide; revise the servo cutting timing on the HMI panel.

Partial tunnel, no heating, or unstable temperature?

Replace broken heating tube; fix loose thermocouple probe or faulty solid-state relay.

Clamping cylinder stuck with abnormal noise?

Drain water from the air filter; add lubricant to the cylinder; clear film scraps stuck in the guide rail.

Film cracks after thermal shrinking?

Reduce overheat of the corresponding tunnel zone; change the qualified PE film; add edge protection for sharp carton corners.

Regular maintenance checklist?

Daily: Clean cutter residue & conveyor waste, wipe photo sensor lens.
Weekly: Lubricate chains & guide rails with high-temp grease, drain air filter.
Monthly: Tighten all bolts, remove carbon dust inside the shrink tunnel, and inspect blower status.

Warranty policy?

12-month full machine warranty (excludes man-made damage & consumables), lifelong cost-price spare parts supply, overseas remote video repair guidance available.

Preheating time under cold weather below 10℃?

Preheat 30~40 mins, heat the tunnel by gradient temperature to avoid heater damage from sudden temperature change.

CE certification & global voltage customization?

CE approval available, custom 110V/220V/415V industrial voltage for worldwide market clearance.

Export packaging solution?

Fumigated solid wooden case for separate packing of main unit & shrink tunnel, operation manual, trial spare parts & tools included.
