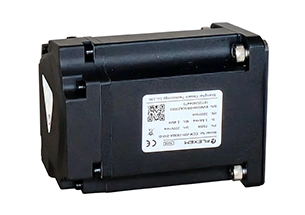

All-Servo Drive System
Energy-Efficient Design
Smart Control System

Get A Quote

Automatic Double Sides Sealing Shrink Wrapping Machine

RSG-1000

Model	RSG-1000 Sealing & Cutting Machine
Sealing Type	Double Sides Sealing, Full Closed Sealing
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	5-10 Packs per Minute (Depends on Product Size)
Sealing Width	1400MM
Sealing Height	500MM
Packing Length	Unlimited
Packing Size	Width + Height ≤ 1400MM
Film Type	Center Folded POF/ PE Film
Max Film Roll Size	1800MM (Width) X 280MM (Outer Diameter)
Working Height	780-850MM
Sealing Machine Dimensions	Depends on Product Size
Sealing Machine Weight	Depends on Product Size
Power	8.5KW
Sealing Blade Width	Depends on Product Size
Film Thickness	15-30 Micron (Minimum-Maximum)
Machine Material	Carbon Steel

Model	Shrink Tunnel
Oven Size	2000MM (L), Entrance 900(W) X 280(H) MM
Conveyor Speed	Variable,40 M/Min
Conveyor	Chains with Rotating Silicon Coated Rods
Rated Power Consumption	Depends on Product Size
Working Height	780 - 850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	Depends on Product Size
Weight(Net/ Gross)	Depends on Product Size

Get A Quote

Advantages	RYMACH	Others
1. Machine Stability	Adopting a thickened square tube and steel plate welding, with strong rigidity and long-term high-speed deformation resistance; an integrated molding base, reducing thermal deformation and ensuring long-term precision stability.	Most of them are lightweight racks, which are prone to shaking and deviation at high speeds; Mostly assembled by splicing, the accuracy is prone to drift.
2. Machine Structure	Synchronized left and right sealing and cutting, balanced force, straight sealing without crooked edges.	Ordinary single-sided sealing is prone to tilting due to uneven force distribution.
3. Sealing Cutter	Alloy steel PTFE sealing knife, high temperature resistance, non-stick film, no burnt edge, smooth incision without burrs.	An ordinary carbon steel knife, easy to stick and burn, requires frequent cleaning.
4. Temperature Controller	Independent temperature control for left and right edge sealing, with precise temperature control of ± 1 ℃, suitable for thick and thin films.	Single temperature zone, large temperature difference, easy film breakage, and poor sealing of thick film.
5. Electrical Parts	Siemens PLC+color touch screen, intuitive operation, capable of storing multiple sets of formulas.	Domestic PLC or relay control.
6. After-Sale Service	1 year warranty, lifetime maintenance; Online technical training+remote diagnosis; Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Large Carton

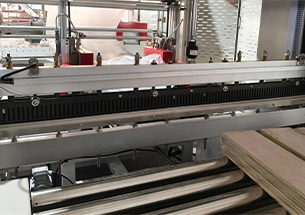

Wood Board

Product Overview

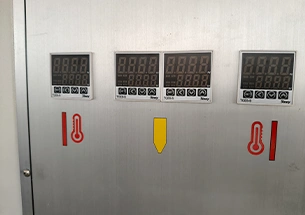

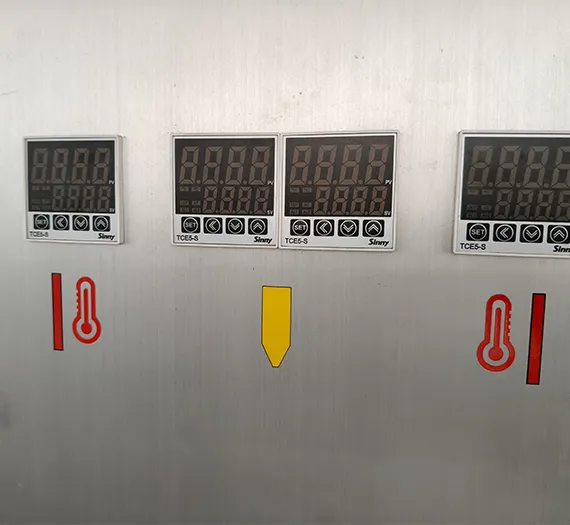

Wider and longer products such as: floor board, door, window, glass, wood pallet, corrugated cardboard, wallpaper roll, etc. Original ''Omron'' digital display temperature controller with built-in PID function, the sealing knife temperature is extremely sensitive and accurate, temperature is adjustable.

Designed for wider and longer products with double continuous side sealing, the product packing length is infinite.

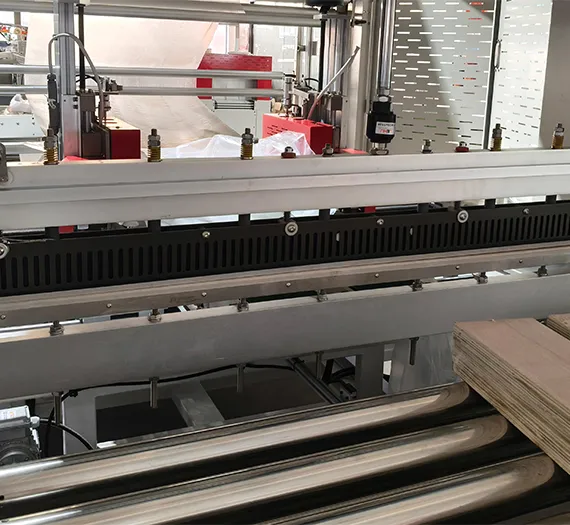

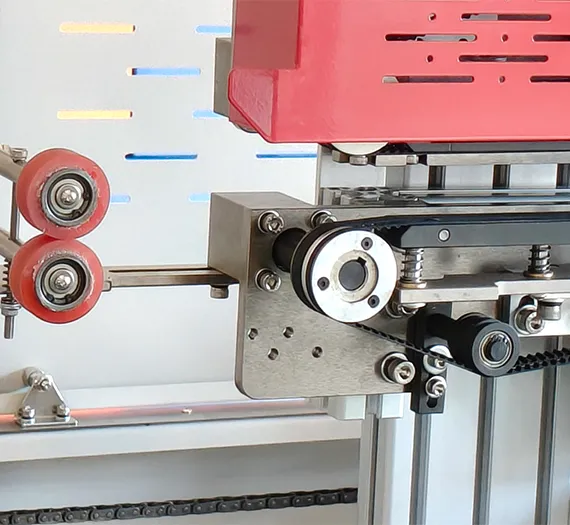

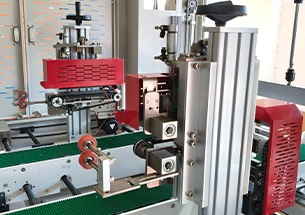

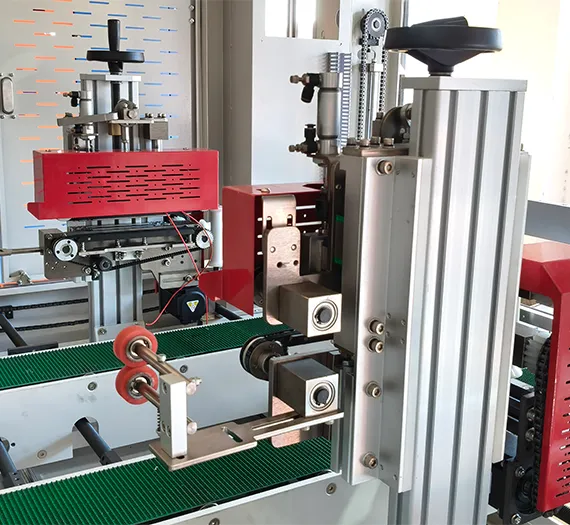

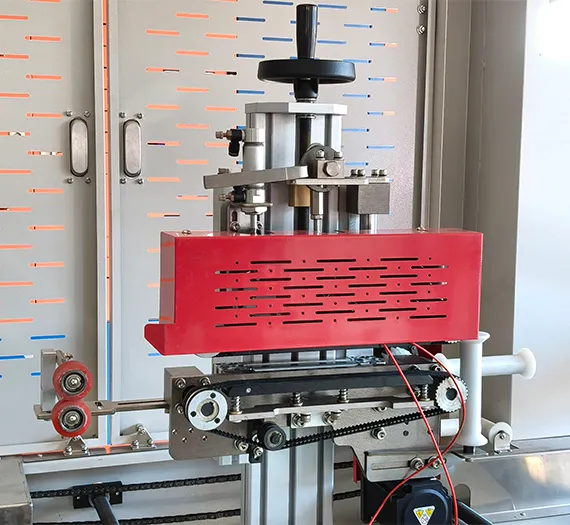

Top and bottom film rolls are synchronized feeding, while the product is moving forward, the side sealing device starts to heat seal and cut the top and bottom film.

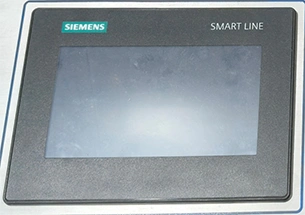

Siemens PLC program controller to realize the integration of the machine, electricity, and gas.

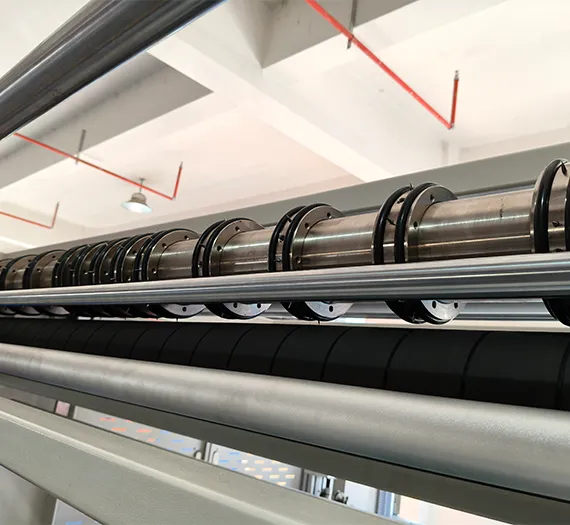

The waste film collection system is synchronized, the film traction will not be too loose or too tight and pulled apart, and the waste film is easily disassembled.

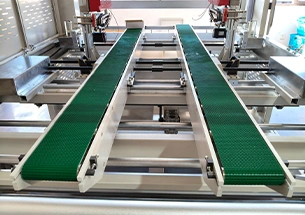

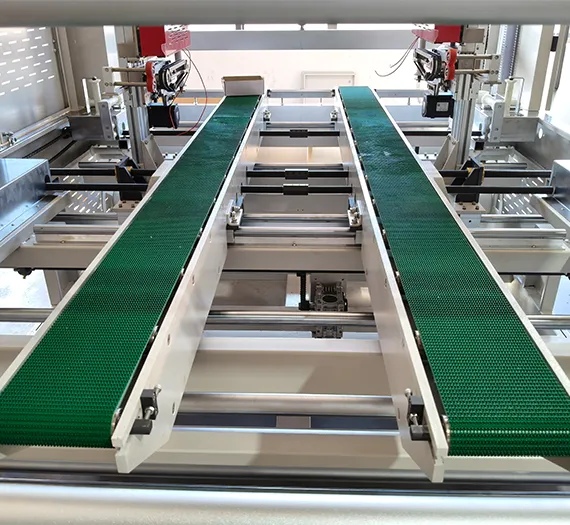

According to the different sizes of products, the machine can match the front, middle, and output conveyor belts for easy operation.

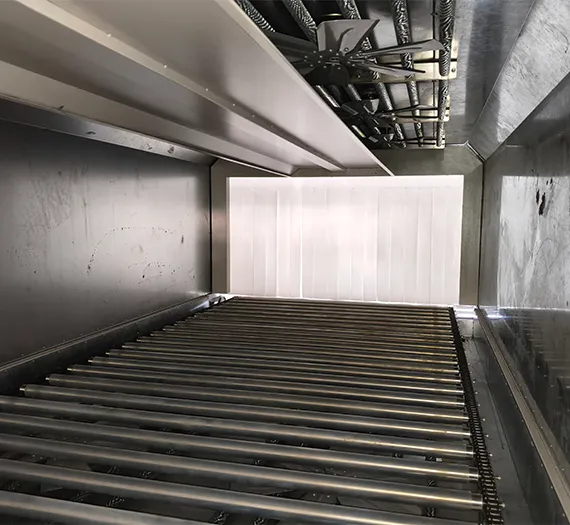

The internal air circulation motors make the hot air in the furnace more evenly distributed to achieve a good shrinkage effect.

The machine can use PE high-strength film, which is suitable for long-distance transportation and handling to protect products from damage and moisture.

Applicable products?

Designed for large-sized products: windows, doors, wooden floor, pizza box, etc.

Production running speed & output?

Standard:5 packs/min

Compatible shrink film?

Heavy-duty PE shrink film(30-100μm) is the main option; thickened POF single-layer shrink film (11-19μm) is applicable.

Size changeover time for different products?

PLC touch screen saves multi-group parameters for one-click adjustment of product length, packing speed, and bag length.

Recommended working temperature?

Depends on your product and film thickness.

Packed film bulges with trapped air inside?

1. Fit the pin roller to punch exhaust holes in the film.
2. Slow down conveyor feeding speed.
3. Raise the front tunnel temperature for complete air exhaust.

Wrinkled loose shrink film after heating?

Low tunnel temperature / over-fast feeding → increase temp or reduce running speed; uneven double-film tension → adjust roller handwheel; oversized film width → switch matched PE roll.

Upper/lower film deviates & uneven bilateral sealing edge?

Fix film roll at central position; balance left-right film tension; straighten dual-side feeding fence; recalibrate front&rear photo eye position & sensitivity.

Seam splits/burnt or cutter sticks to wrapping film?

Split seal: increase cutter temperature & cylinder air pressure; Burnt seal: lower heating temp or speed up machine; Sticky cutter: replace worn Teflon anti-stick tape.

Double-sided cutter scratches carton/board accidentally?

Modify servo cutter stroke parameter on HMI; realign dual-side limiting baffle; fine-tune cutter lifting screw height.

Partial extended tunnel, no heating or unstable temperature?

Replace broken heating tube; fix loose thermocouple probe or defective solid-state relay.

Bilateral sealing mechanism stuck with abnormal vibration & noise?

Clear PE scraps on the chain & guide rail; fill high-temperature lubricant; tighten loose servo drive belt.

Large-area film cracks after heat shrinking?

Reduce overheating of the relevant tunnel zone; switch to qualified raw PE film; add edge protection for sharp cargo corners.

Regular maintenance checklist?

Daily: Clean bilateral cutter glue residue & conveyor scraps, wipe photo sensor lens.
Weekly: Lubricate guide rail & transmission chain, drain accumulated water from air filter.
Monthly: Tighten all machine bolts, clear carbon dust inside the extended tunnel, and inspect the multi-group blower & motor status.

Warranty regulation & spare part supply?

12-month whole machine warranty (excludes consumables & man-made damage), lifelong cost-price spare parts supply, overseas remote video repair guidance available.

CE certification & global voltage customization?

CE approval available, custom 110V/220V/415V worldwide industrial voltage for global market clearance.

Export packaging solution?

Fumigated solid wooden case for separated packing of main machine & extended shrink tunnel, operation manual, trial spare parts, and standard tools enclosed.
