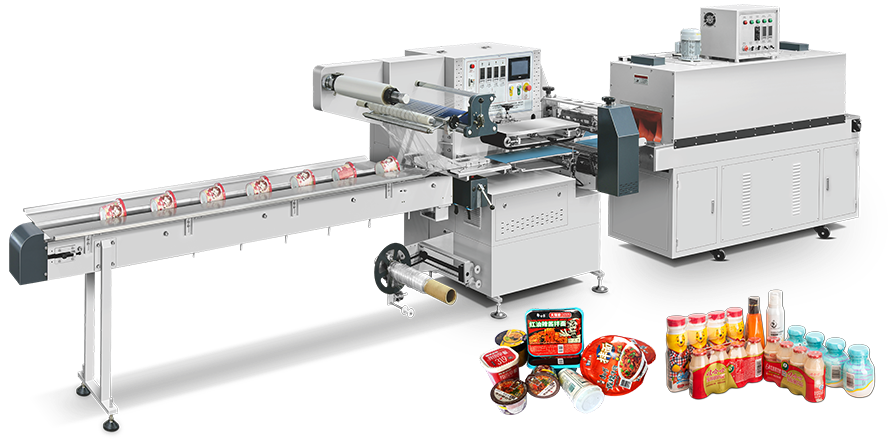

Automatic High Speed Shrink Packing Machine

RS-590+RT-3025S

RS-720+RT-3025S

Automatic High Speed Flow Type Heat Shrink Packing Machine

Automatic shrink wrapping machine can use for single or group products packaging of bucket noodles, bowl noodles, all kinds of fast-food box, milk tea cup, fruit milk boxes, pesticide bottles, garbagebags roll, fresh keep roll, fiberglass tape, cotton rolls, pagoda threads, all kinds of boxes, bath salt balls, grapefruit, vermicelli, bandages, soap, ledger books, electrical components, mosquito coil, lottery ticket and other products.

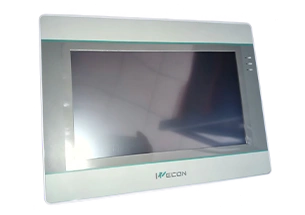

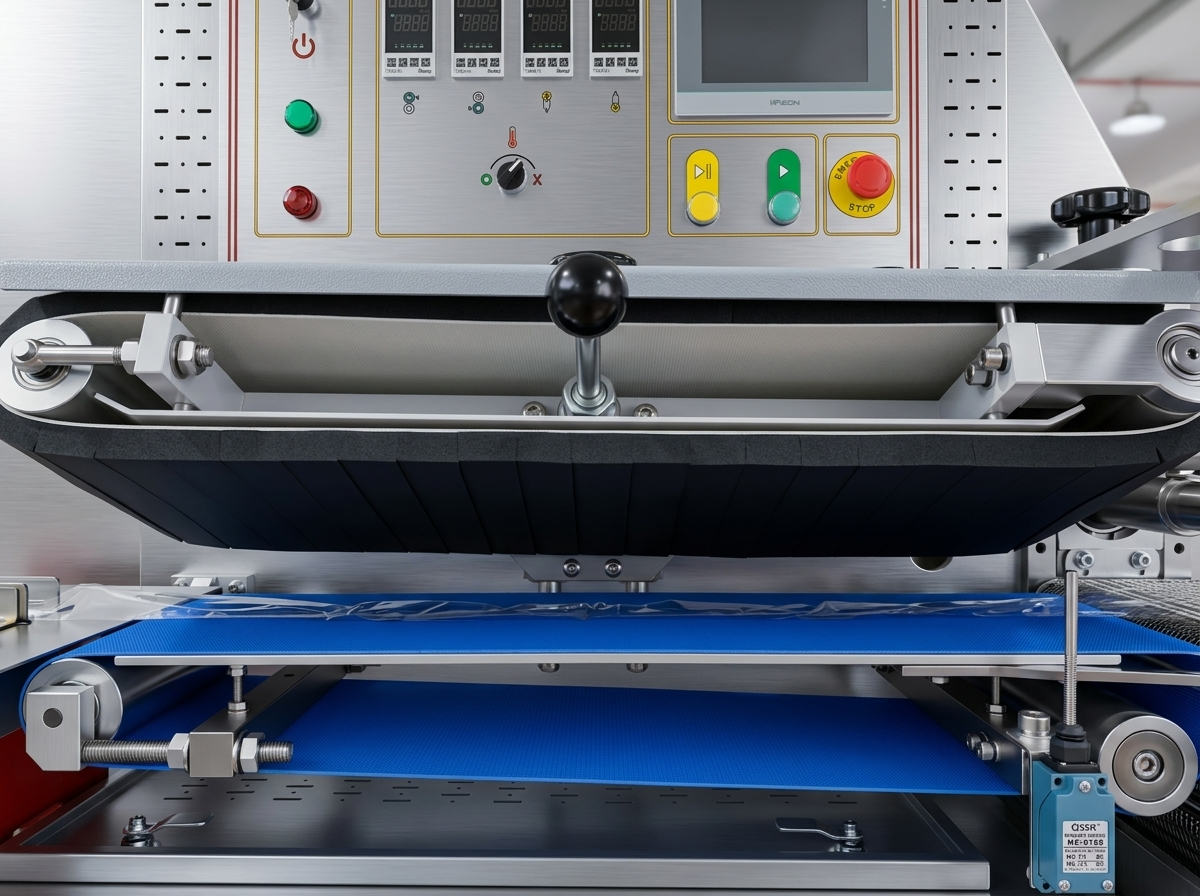

PLC color touch screen control system
20% Energy Saving
With the positioning stop function, it can prevent scalding film
No mechanical eccentric device

RSL-590+RT-3525

RSL-720+RT-3525

Automatic Continuous Motion Flow Type Heat Shrink Packing Machine

Automatic shrink packing machine can use for single or group products packaging of eraser, pen, lipstick, beverage bottle, cosmetics, skin care products, aerosol cans, medical products, pesticide bottles, garbage bags roll, freshkep roll, fiberglass tape, cotton rolls, pagoda threads, all kinds of boxes, bath salt balls, grapefruit, vermicelli, bandages, soap, ledger books, electrical components, instant vermicelli, and other products.

Reciprocating cutter system
50mm shortest size
Wrap-around scrap recycling device
Heat shrink oven with high efficiency double temperature zone

RSJ-590+RT-3025S

RSJ-720+RT-3025S

High Speed Flow Sealing (Electrostatic Adherence Type)

Electrostatic adherence type packaging for single or group products of bucket noodles, bowl noodles, all kinds of fast-food boxes, milk tea cups, fruit milk boxes, pesticide bottles, garbage bags rolls, fresh keep roll, fiberglass tape, cotton rolls, pagoda threads, all kinds of boxes, and other products.

Applicable to single or group product packaging

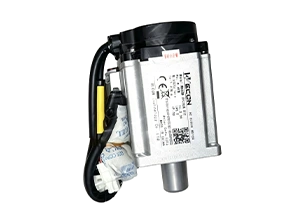

three servo motors and drives

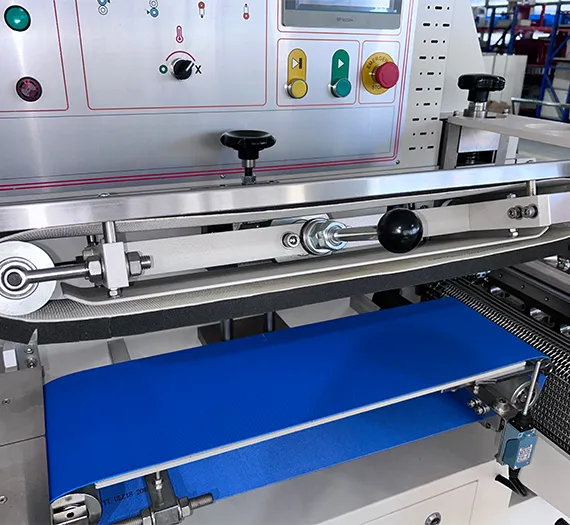

Adopt a closed-type bottom sealing device
No need to adjust the mechanical eccentricity
when changing different length products

Advantages	RYMACH	Others
1. Servo Motor	3 servo independent drive (feeding conveyor/sealing cutter/film delivery), equipped with a PLC color touch screen, can quickly adjust parameters, saving more time, and can reach 150 packs/min.	2 servo or mechanical cam structure, changing specifications requires manual adjustment, and adjusting the machine takes a long time.

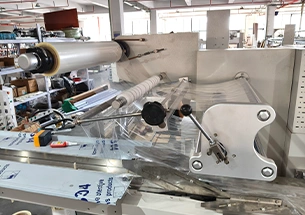

2. Film Deliver Structure	Using a POF single-layer film, a winding waste film recycling device saves about 20% of materials.	Traditional folding film, easy recycling, and high waste.

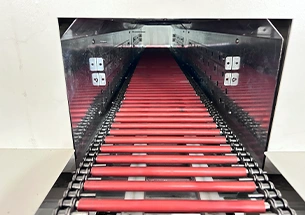

3. Film Deliver Structure	Dual temperature zone, independent temperature control, and efficient hot air circulation, saving about 20% electricity.	Single temperature zone, temperature control, and low thermal efficiency, will cause high energy consumption and high membrane consumption.
4. Shrink Tunnel	The width/height of the molding machine can be quickly adjusted, adaptable to multiple specifications.	Changing the size requires changing the molding tool/tool holder, which is costly and has poor adaptability

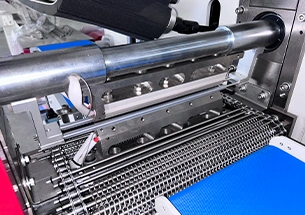

5. Molding Device	Alloy steel single blade cutter, sturdy, durable, and high temperature resistant, ensures a smooth and firm, easy to clean and replace cutter.	Ordinary carbon steel integrated knife, complex replacement, film adhesion at high temperatures, wrinkling, and tearing of the seal.
6. After-Sale Service	1 year warranty,lifetime maintenance; Online technical training+remote diagnosis;Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Bottles

Box

Disposable Cleaning Wipes

Garbage Roll

Instant Noodle Bowls

Accessory

Tissue Roll

Would you like to speak to our specialists?

Our team is here to provide you with expert advice and guidancetailored to your specific needs.

Get in touch

Single or group products packaging of bucket noodles, bowl noodles, all kinds of fast-food box, milk tea cup, fruit milk boxes, pesticide bottles, garbage bags roll, fresh keep roll, fiberglass tape, cotton rolls, pagoda threads, all kinds of boxes, bath salt balls, grapefruit, vermicelli, bandages, soap, ledger books, electrical components, mosquito coil, lottery ticket and other products.

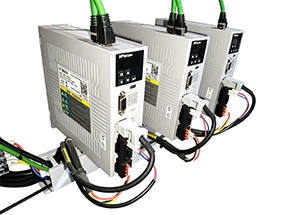

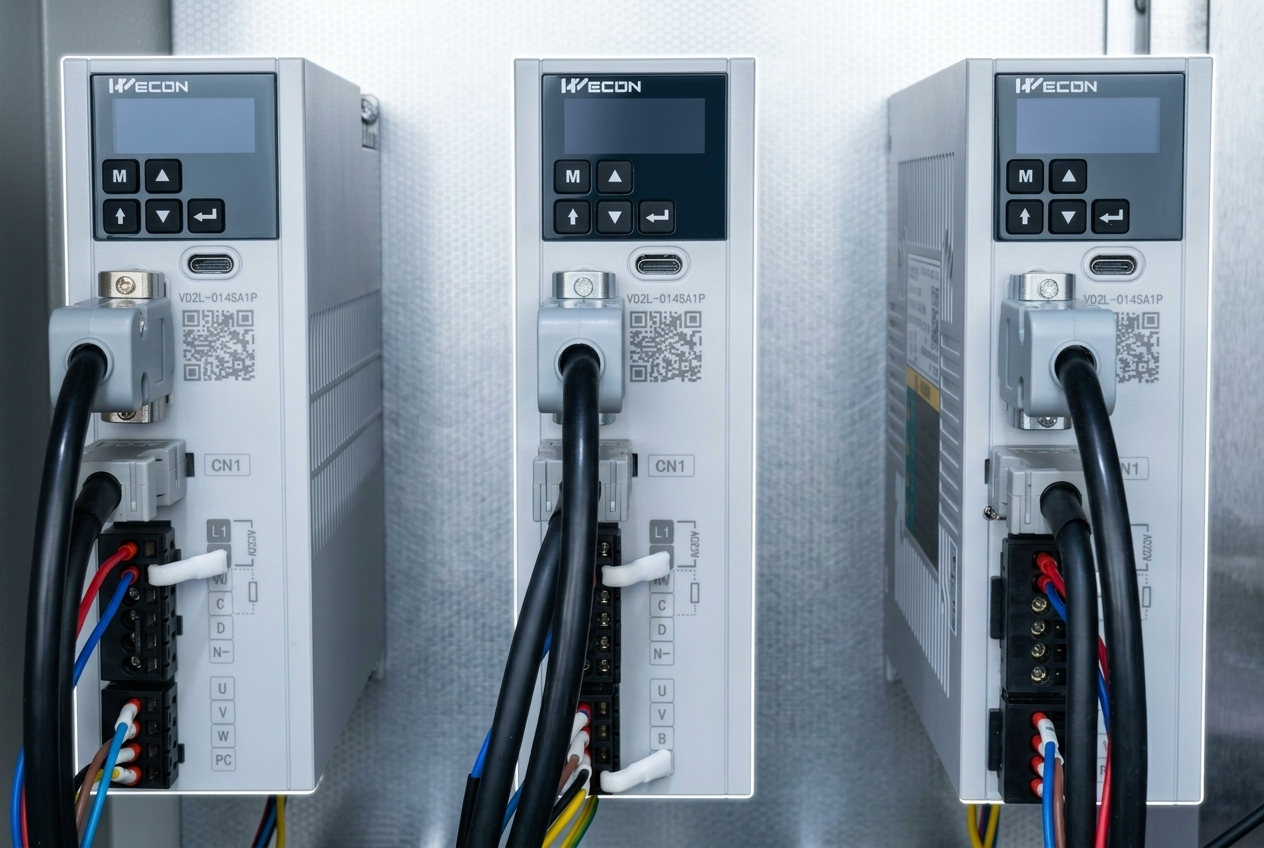

PLC color touch screen control system with three servo motors and drives, the three servo motors control the knife axis, film, longitudinal seal operation, and input conveyor.

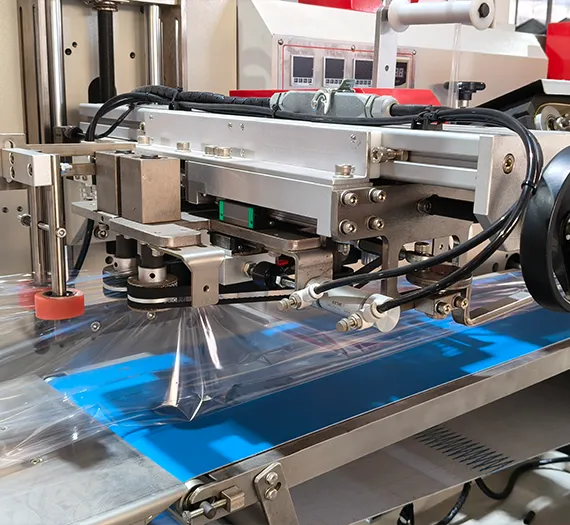

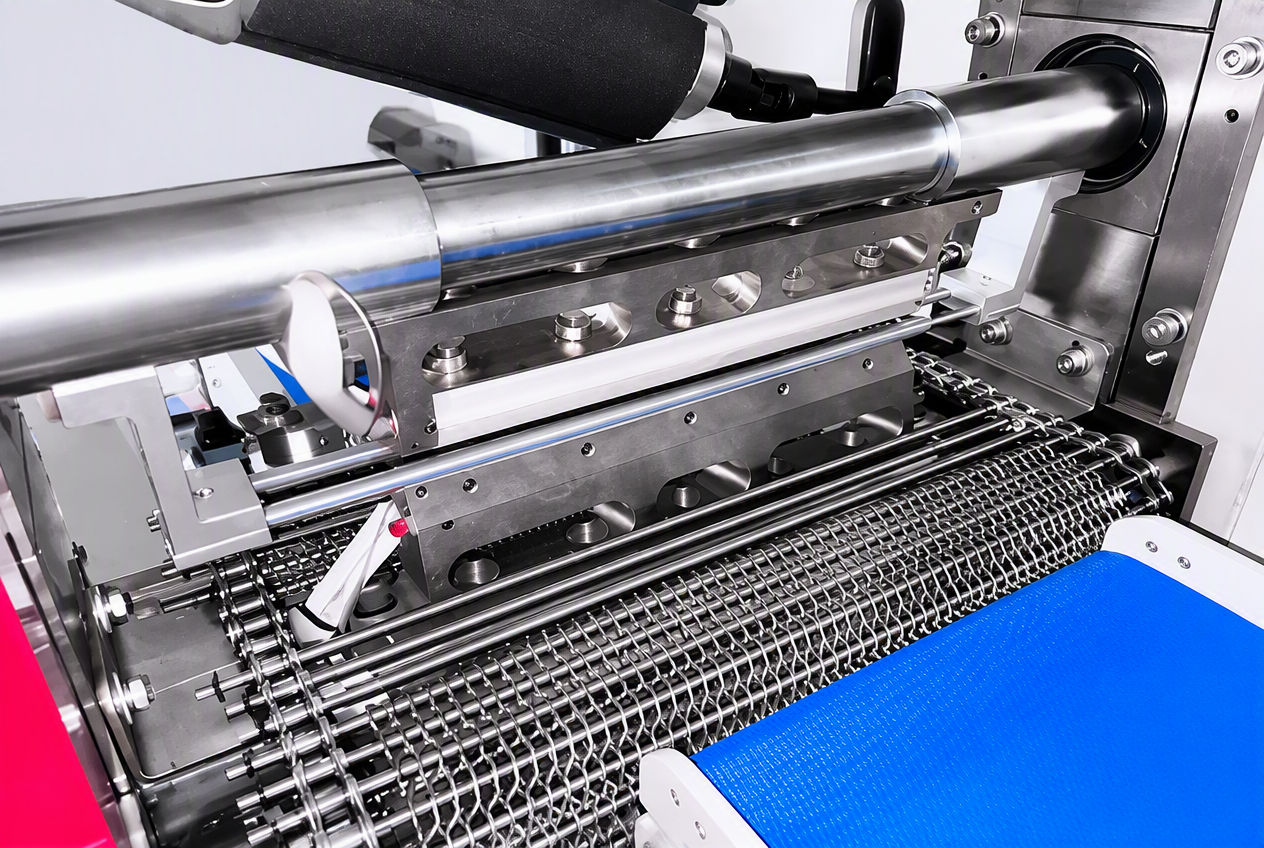

Adopt a closed-type bottom sealing device and an electronic torque anti-cutting function of the horizontal knife. With the positioning stop function, it can prevent scalding film, the bottom cutting is stable and firm, and also protects the horizontal sealing device.

No mechanical eccentric device. No need to adjust the mechanical eccentricity when changing different length products, easy to operate.

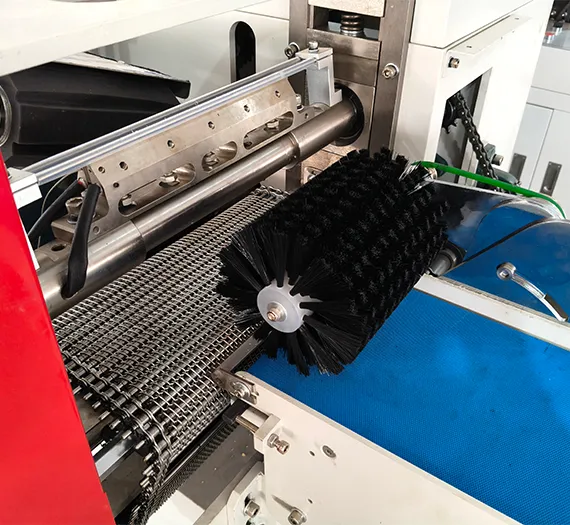

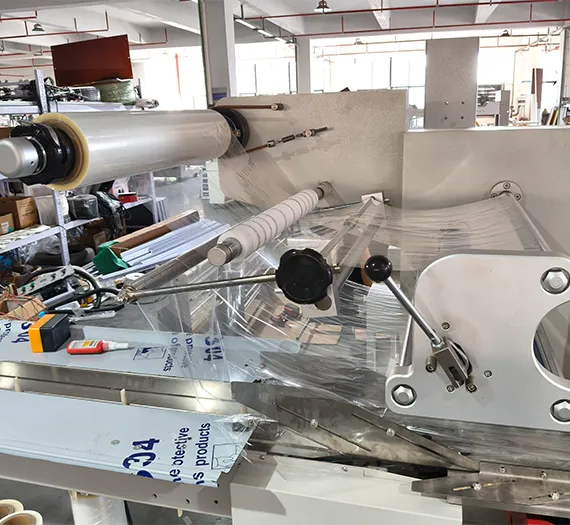

Wrap-around scrap recycling device, saving about 20% material compared to the traditional center-fold film packaging machine.

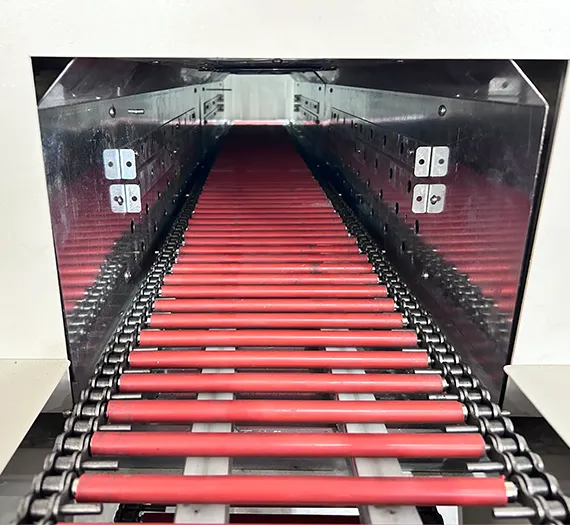

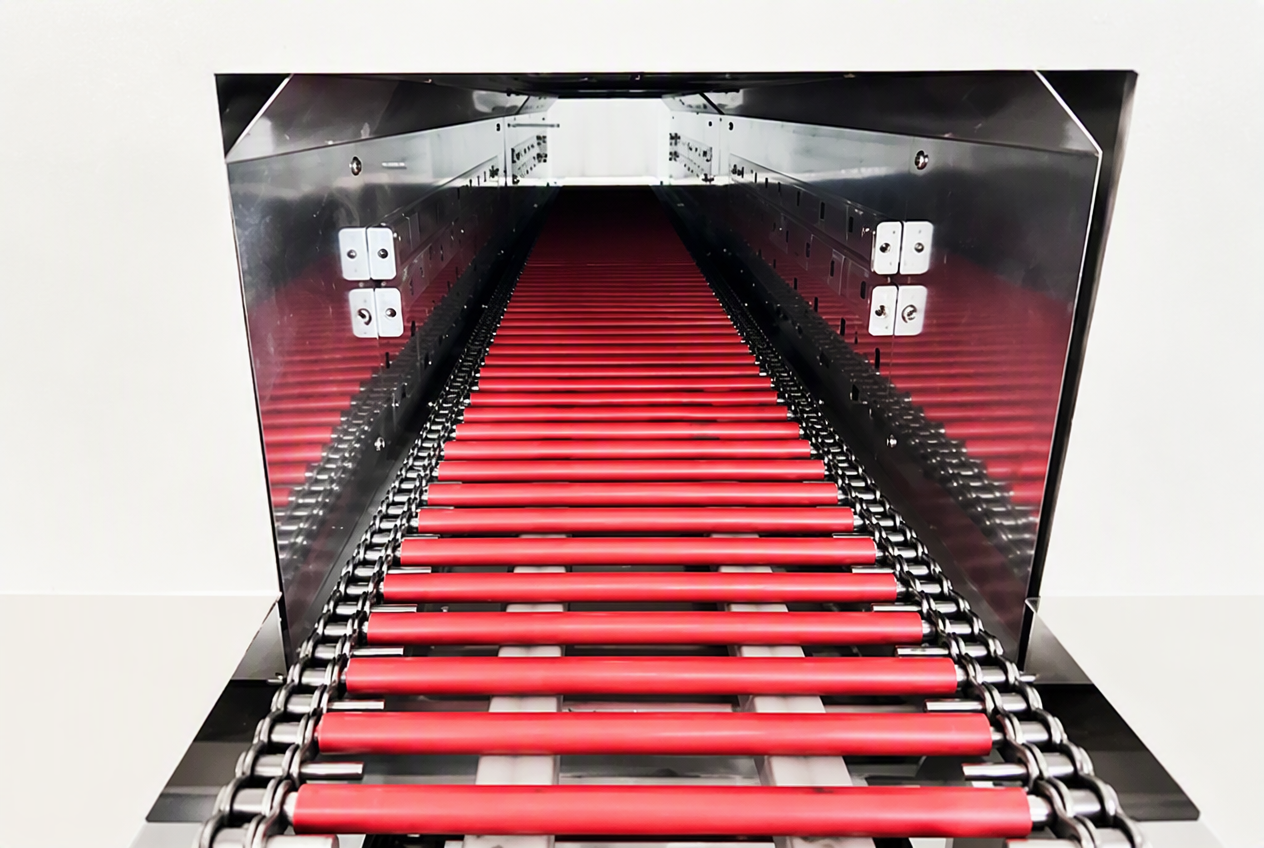

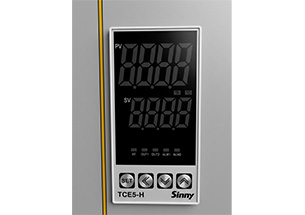

Heat shrink oven with high efficiency double temperature zone, infinitely speed adjust, and automatic temperature control. High efficiency hot air circulation to ensure the quality of shrinkage.

Optional: ink wheel type coder, intelligent coder, spray coder.

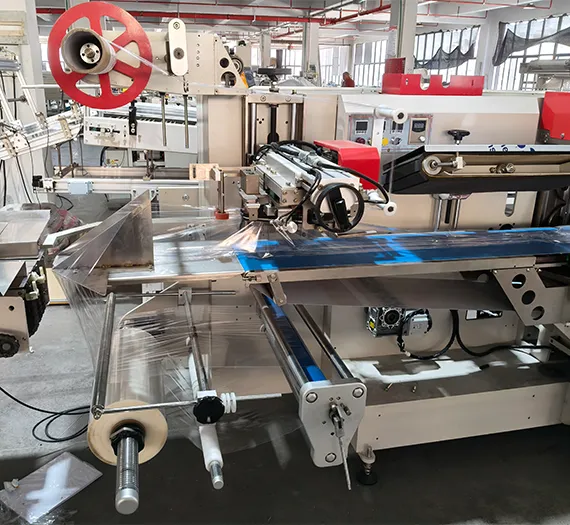

It's an inline pillow-type shrink packaging machine, ideal for single-row paper cups, plastic bowls, cutlery sets, instant noodles, adhesive tapes, and regular long-shaped goods. Custom feeding fixtures available for irregular items, free sample testing supported.

What's the production speed & output capacity?

Standard speed: 100-150 packs per minute, adjustable by product length & film thickness. Capable of connecting the upstream automatic feeding production line.

Which shrink films are compatible? POF / PE / PVC?

POF single-layer shrink film is the priority option for smooth shrinking; Applicable film thickness:11-19μm.

Power supply requirement? Total power consumption?

Standard 220V 1-phase power for sealing and cutting machine, 380V 3-phase power for shrink tunnel, total power: 17.5KW. Independent temperature control for the shrink oven, a separate power circuit is suggested. Custom voltage, like 220V/415V available for the overseas market.

Can we send samples for a trial run? How long for customized modification?

Free sample packaging test in our factory. Standard modification:3~7 working days; in-stock machines can be delivered within 3 working days.

After delivery, who arranges installation & training? Any auxiliary machines needed?

We provide on-site installation & operator training for 1~2 working days. No extra auxiliary equipment required except clean compressed air (0.5MPa) and shrink film. Optional auto feeder & sorting conveyor available.

How long for a size changeover when switching between different goods?

3-5 mins for same-category size replacement. PLC touch screen saves multiple parameter recipes, one-click recall for feeding speed, sealing temp, and tunnel air speed.

Recommended heating temperature for the shrink tunnel & sealing cutter?

POF film: Tunnel 160~200℃, sealing knife 130~170℃, adjust temp based on ambient temperature & film thickness.

Packaged film keeps bulging with trapped air inside. How to fix?

1. Punch tiny exhaust holes in the wrapping film.
2. Reduce conveyor speed for full air exhaust before shrinking.
3. Slightly raise the tunnel heating temperature.

Finished film is wrinkled & loose on the product surface.

Low tunnel temperature or over-fast conveyor → raise temp / slow down speed; uneven film tension → adjust tension spring; oversized film width → change to a narrower matching film roll.

Film runs off track & folds during wrapping.

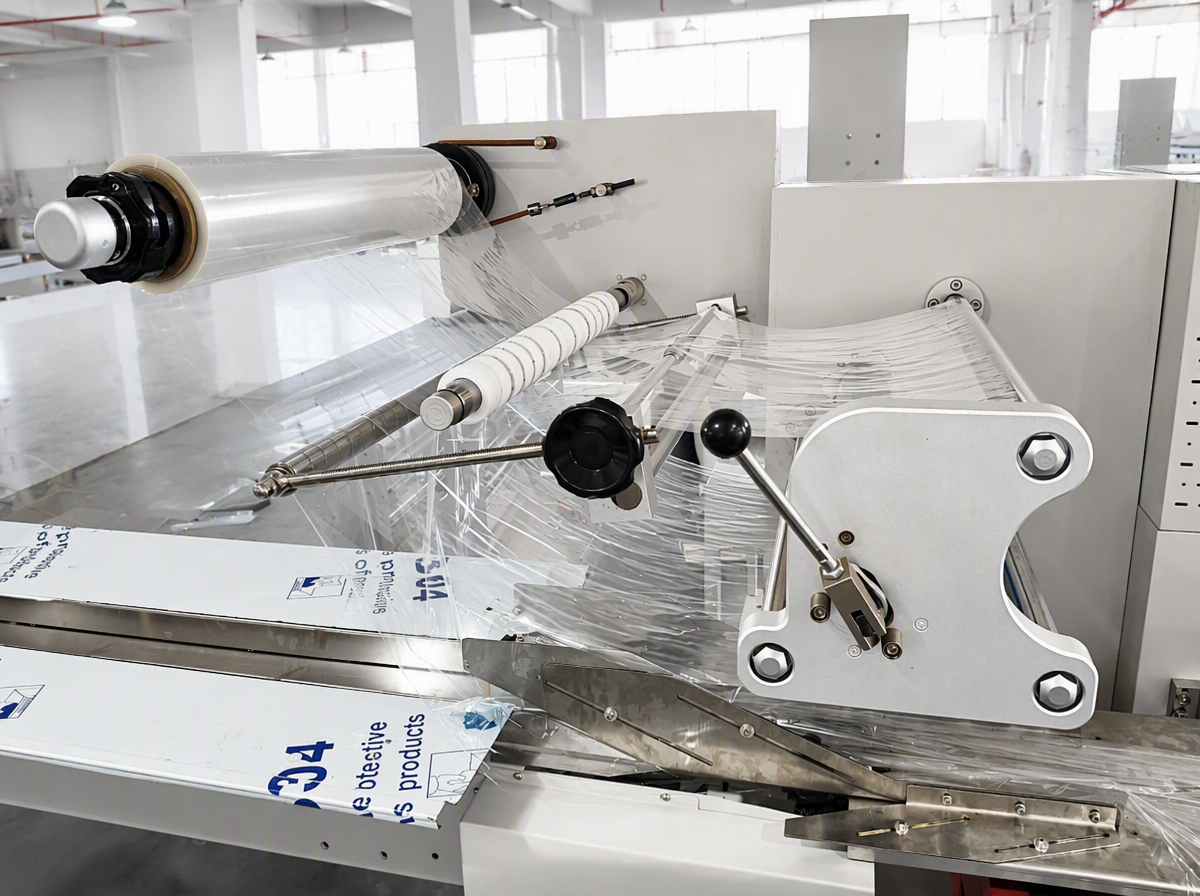

1. Fix the film roll in the center position.
2. Adjust left-right film tension.
3. Recalibrate photo eye sensitivity & position.

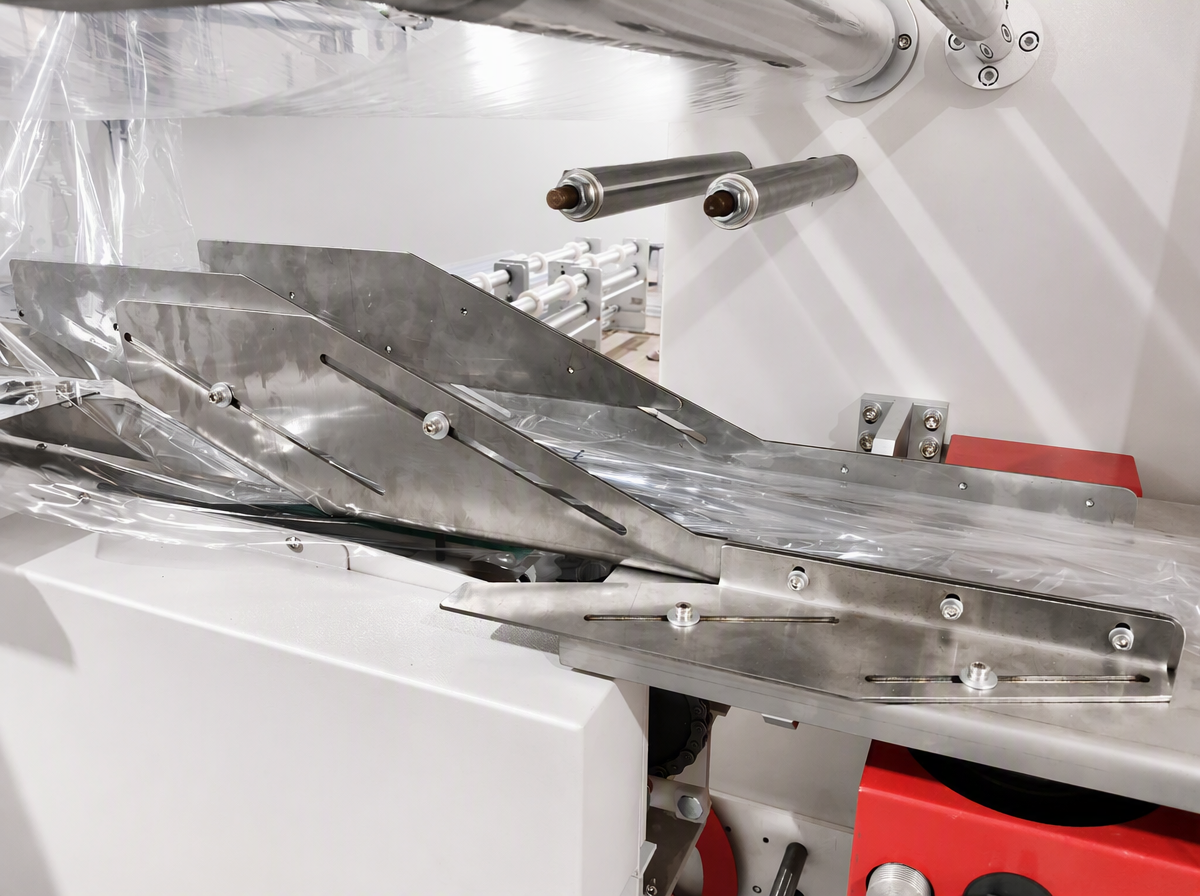

4. Modify the guide triangle angle.

Seam is weak & splits/burns while sealing.

Split seal: insufficient knife temperature or clamping pressure → increase temp & spring pressure; Burnt seal: overhigh temp or slow running speed → lower temp or speed up machine; Sticky knife: replace Teflon anti-stick tape on cutter.

The cutting blade cuts into products accidentally.

Wrong cutter height → adjust knife elevation; asynchronous feeding & cutting timing → revise servo parameter on touch screen; skewed incoming goods → fix front limiting baffle.

The shrink tunnel heats unevenly, or one side has no heat.

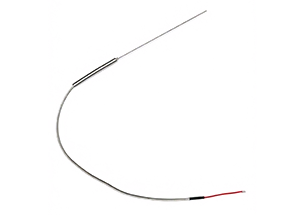

Burnt heating tube → replace original heater; loose/broken thermocouple → refasten wire or change sensor; defective solid state relay → replace electrical component.

The machine can't start with a dead control panel.

Check 3-phase power shortage; replace blown fuse; reset emergency stop button; tighten loose wiring terminals.

Film cracks & bursts after heat shrinking.

Overheat in partial tunnel zone → lower corresponding zone temp; poor quality raw film → switch qualified POF film; sharp product edge → add edge protection.

Regular maintenance schedule & work list?

• Daily: Clean sealing residue & conveyor scraps, wipe photo eye lens.
• Weekly: Lubricate chains & guide rails with high-temp grease, drain water from air filter.
• Monthly: Tighten all screws, clean carbon dust inside the shrink tunnel, and inspect blower operation.

Warranty period & spare part supply?

12-month whole machine warranty (exclude artificial damaged consumables). Original spare parts at cost price all year round, fast express delivery for domestic & overseas.

Preheating time under a low winter environment?

Preheat 20~30 mins when the ambient temp below 10℃, heat the tunnel step by step to avoid heater damage and abnormal shrink result.

Support custom voltage (415V/220V) & CE certification for export?

Custom global voltage (110V/220V/415V) available, CE certification provided for customs clearance.

Export packing way? Wooden case or nude packing?

Fumigated solid wooden export case, main machine & shrink tunnel packed separately, operation manual, standard tools & trial spare parts attached together.
