Automatic Continuous Motion Flow Type Heat Shrink Packing Machine

Reciprocating cutter system
50mm shortest size
Wrap-around scrap recycling device
Heat shrink oven with high efficiency double temperature zone

Get A Quote

Automatic Continuous Motion Flow Type Heat Shrink Packing Machine

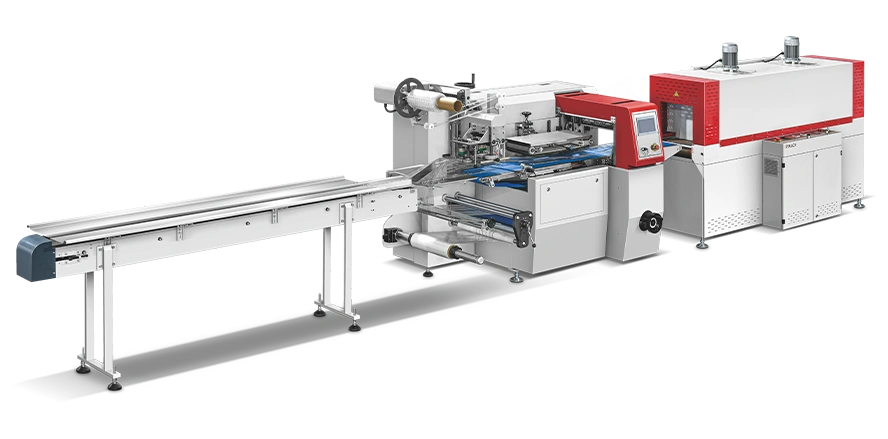

RSL-590+RT-3525

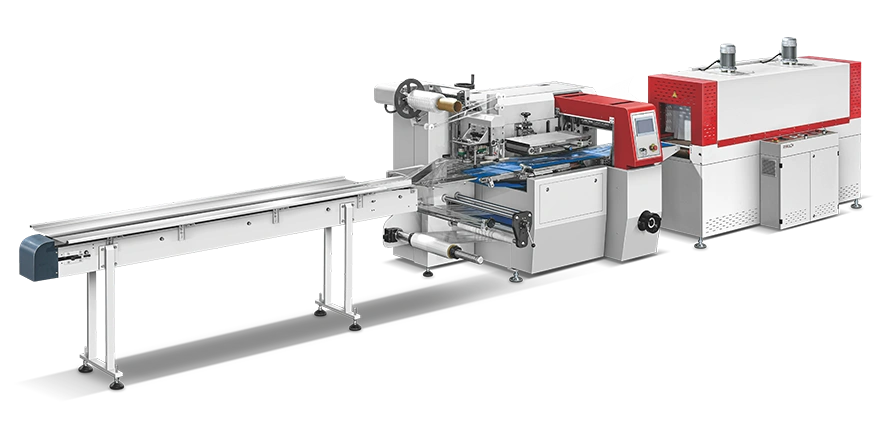

RSL-720+RT-3525

Model	RSL-590 Sealing & Cutting Machine
Sealing Type	High Speed Flow Type Sealing
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	30-150 Packs per Minute (Depends on Product Size)
Sealing Height	20-120MM
Packing Width	170MM
Packing Length	Unlimited
Packing Size	(Width+Height)*2+100≤ 590
Film Type	Single Layer POF Film
Max Film Roll Size	590MM (Width) X 280MM (Outer Diameter)
Working Height	800-900 MM
Sealing Machine Dimensions	493011301500MM
Sealing Machine Weight	775KG
Power	5.5KW
Machine Material	Carbon Steel

Model	RT-3525 Shrink tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	12KW
Tunnel Oven Size	2000350250MM
Working Height	800-900MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	24006001550MM
Tunnel Weight	355KG

Model	RSL-720 Sealing & Cutting Machine
Sealing Type	High Speed Flow Type Sealing
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	30-150 Packs per Minute (Depends on Product Size)
Sealing Height	40-150MM
Packing Width	240MM
Packing Length	Unlimited
Packing Size	(Width+Height)*2+100≤ 720
Film Type	Single Layer POF Film
Max Film Roll Size	720MM (Width) X 280MM (Outer Diameter)
Working Height	800-900 MM
Sealing Machine Dimensions	493011301500MM
Sealing Machine Weight	775KG
Power	5.5KW
Machine Material	Carbon Steel

Model	RT-3525 Shrink tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	12KW
Tunnel Oven Size	2000350250MM
Working Height	800-900MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	24006001550MM
Tunnel Weight	355KG

Get A Quote

Advantages	RYMACH	Others

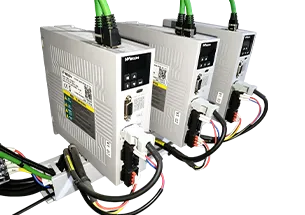

1. Servo Motor	3 servo independent drive (feeding conveyor/sealing cutter/film delivery), equipped with a PLC color touch screen, can quickly adjust parameters, saving more time, and can reach 150 packs/min.	2 servo or mechanical cam structure, changing specifications requires manual adjustment, and adjusting the machine takes a long time.
2. Film Deliver Structure	Use POF single-layer film, winding waste film recycling device saves about 20% of materials.	Traditional folding film, easy recycling, and high waste.
3. Film Deliver Structure	Dual temperature zone, independent temperature control, and efficient hot air circulation, saving about 20% electricity.	A single temperature zone, temperature control, and low thermal efficiency will cause high energy consumption and high membrane consumption.
4. Shrink Tunnel	The width/height of the molding machine can be quickly adjusted, adaptable to multiple specifications.	Changing the size requires changing the molding tool/tool holder, which is costly and has poor adaptability.
5. Molding Device	Alloy steel single blade cutter, sturdy, durable, and high temperature resistant, ensures sealing is smooth and firm; easy to clean and replace the cutter.	Ordinary carbon steel integrated knife, complex replacement, film adhesion at high temperatures, wrinkling, and tearing of the seal.
6. After-Sale Service	1 year warranty, lifetime maintenance; Online technical training+remote diagnosis; Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Accessory

Box

Daily User

Tissue Roll

Product Overview

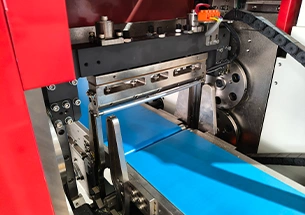

Reciprocating cutter system, better suitable for short product sealing and cutting packaging. The shortest size can be wrapped up to 50mm.

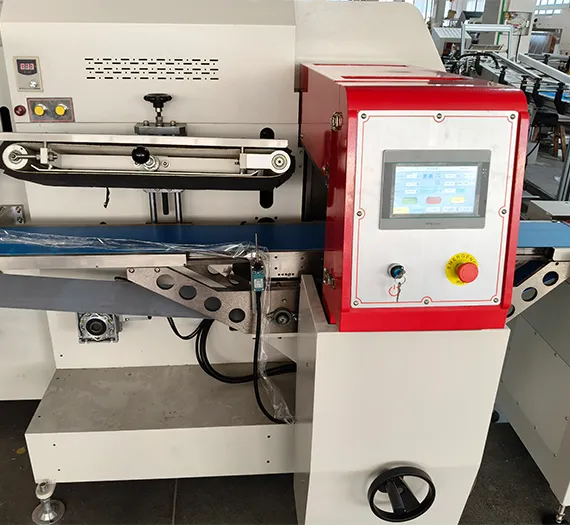

PLC color touch screen control system with three servo motors and drives, the three servo motors control the knife axis, film, longitudinal seal operation, and input conveyor.

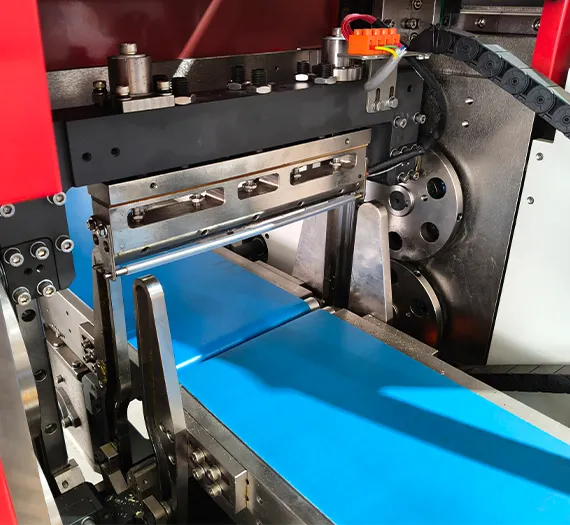

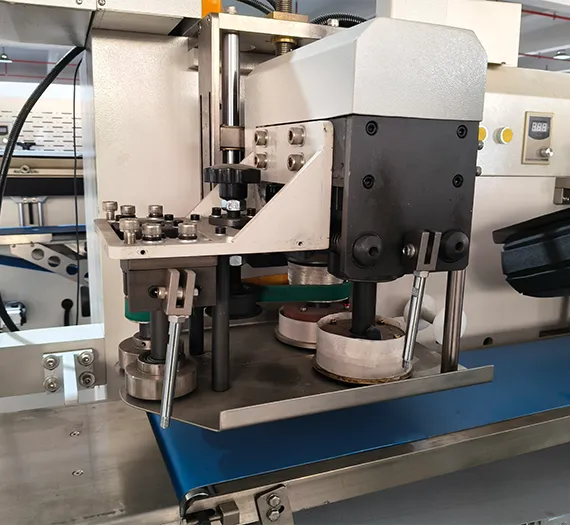

Adopt a closed-type bottom sealing device and an electronic torque anti-cutting function of the horizontal knife. With the positioning stop function, it can prevent scalding film, the bottom cutting is stable and firm, and also protects the horizontal sealing device.

No mechanical eccentric device. No need to adjust the mechanical eccentricity when changing different length products, easy to operate.

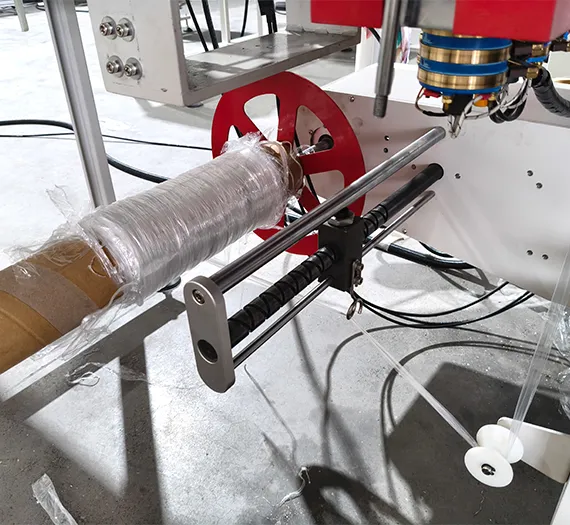

Wrap-around scrap recycling device, saving about 20% material compared to the traditional center-fold film packaging machine.

Heat shrink oven with high efficiency double temperature zone, infinitely speed adjust, and automatic temperature control. High efficiency hot air circulation to ensure the quality of shrinkage.

What products can this shrink wrapper pack? Can it wrap paper cups / disposable tableware?

It's an inline pillow-type shrink packaging machine, ideal for single-row paper cups, plastic bowls, cutlery sets, instant noodles, adhesive tapes, and regular long-shaped goods. Custom feeding fixtures available for irregular items, free sample testing supported.

What's the production speed & output capacity?

Standard speed: 100-150 packs per minute, adjustable by product length & film thickness. Capable of connecting the upstream automatic feeding production line.

Which shrink films are compatible? POF / PE / PVC?

POF single-layer shrink film is the priority option for smooth shrinking; Applicable film thickness:11-19μm.

Power supply requirement? Total power consumption?

Standard 220V 1-phase power for sealing and cutting machine,380V 3-phase power for shrink tunnel, total power:17.5KW. Independent temperature control for the shrink oven, a separate power circuit is suggested. Custom voltage, like 220V/415V available for the overseas market.

Can we send samples for a trial run? How long for customized modification?

Free sample packaging test in our factory. Standard modification:3~7 working days; in-stock machines can be delivered within 3 working days.

After delivery, who arranges installation & training? Any auxiliary machines needed?

We provide on-site installation & operator training for 1~2 working days. No extra auxiliary equipment required except clean compressed air (0.5MPa) and shrink film. Optional auto feeder & sorting conveyor available.

How long for a size changeover when switching between different goods?

3-5 mins for same-category size replacement. PLC touch screen saves multiple parameter recipes, one-click recall for feeding speed, sealing temp, and tunnel air speed.

Recommended heating temperature for the shrink tunnel & sealing cutter?

POF film: Tunnel 160~200℃, sealing knife 130~170℃, adjust temp based on ambient temperature & film thickness.

Packaged film keeps bulging with trapped air inside. How to fix?

1. Punch tiny exhaust holes in the wrapping film.
2. Reduce conveyor speed for full air exhaust before shrinking.
3. Slightly raise the tunnel heating temperature.

The finished film is wrinkled & loose on the product surface.

Low tunnel temperature or over-fast conveyor → raise temp / slow down speed; uneven film tension → adjust tension spring; oversized film width → change to a narrower matching film roll.

Film runs off track & folds during wrapping.

1. Fix the film roll in the center position.
2. Adjust left-right film tension.
3. Recalibrate photo eye sensitivity & position.
4. Modify the guide triangle angle.

Seam is weak & splits/burns while sealing.

Split seal: insufficient knife temperature or clamping pressure → increase temp & spring pressure; Burnt seal: overhigh temp or slow running speed → lower temp or speed up machine; Sticky knife: replace Teflon anti-stick tape on cutter.

The cutting blade cuts into products accidentally.

Wrong cutter height → adjust knife elevation; asynchronous feeding & cutting timing → revise servo parameter on touch screen; skewed incoming goods → fix front limiting baffle.

The shrink tunnel heats unevenly, or one side has no heat.

Burnt heating tube → replace original heater; loose/broken thermocouple → refasten wire or change sensor; defective solid state relay → replace electrical component.

The machine can’t start with a dead control panel.

Check 3-phase power shortage; replace blown fuse; reset emergency stop button; tighten loose wiring terminals.

Film cracks & bursts after heat shrinking.

Overheat in partial tunnel zone → lower corresponding zone temp; poor quality raw film → switch qualified POF film; sharp product edge → add edge protection.

Regular maintenance schedule & work list?

Daily: Clean sealing residue & conveyor scraps, wipe photo eye lens.
Weekly: Lubricate chains & guide rails with high-temp grease, drain water from air filter.
Monthly: Tighten all screws, clean carbon dust inside the shrink tunnel, and inspect blower operation.

Warranty period & spare part supply?

12-month whole machine warranty (exclude artificial damaged consumables). Original spare parts at cost price all year round, fast express delivery for domestic & overseas.

Preheating time under a low winter environment?

Preheat for 20~30 mins when the ambient temp below 10℃, heat the tunnel step by step to avoid heater damage and abnormal shrink result.

Support custom voltage (415V/220V) & CE certification for export?

Custom global voltage (110V/220V/415V) available, CE certification provided for customs clearance.

Export packing way? Wooden case or nude packing?

Fumigated solid wooden export case, main machine & shrink tunnel packed separately, operation manual, standard tools & trial spare parts attached together.
