Automatic L Sealer Heat Shrink Packing Machine

Shrink tunnel with a visible window to observe the shrinking process
Features imported photoelectric detection sensors
Equipped with original Omron digital temperature controller

Get A Quote

Automatic L Sealer Heat Shrink Packing Machine

RL-400+RT-4525

Model	RL-400 Sealing & Cutting Machine
Sealing Type	L Type Film Sealing Machine
Installed Power	220V; 50HZ; 1Phase
Packing Capacity	15-25 packs per minute (depends on product size)
Sealing Height	120MM
Packing Width	300MM
Product Size	Width + Height ≤400mm; Length + Height ≤480mm
Film Type	Center-Folded POF Film
Max Film Roll Size	530MM (Width) X 280MM (Outer Diameter)
Power Consumption	2.5 KW
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material	Carbon Steel

Model	RT-4525 Shrink Tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	12KW
Tunnel Oven Size	1500450250MM
Working Height	780-850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	18007001300MM
Tunnel Weight	318KG

Get A Quote

Advantages	RYMACH	Others
1. Sealing Cutter	Special alloy + Teflon coating, continuous sealing and cutting without mucous film, no smoke, good shrink package effect.	Ordinary alloy, easy to stick to knives, smoke, and has a short lifespan.
2. Electrical Parts	Equipped with imported components (such as Omron, Panasonic, SMC), stable operation with minimal errors.	Equipped with domestically produced low-end components, with a small number of optoelectronics, and a high failure rate.
3. Machine Stability	High-quality alloy steel, long-term high load without deformation.	Ordinary carbon steel is prone to loosening and deformation.
4. After-Sale Service	1 year warranty, lifetime maintenance; Online technical training+remote diagnosis; Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Book

Box

Cans

Thermal Paper Roll

Applicable for single or group packaging of thermal sensitive paper, food, stationery, beverage bottles, cosmetics, spray cans, medical supplies, brake pads, filters, appliances, boxes, paper trays, paper bowls, paper cups, A4 paper, and other products.

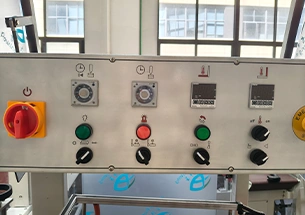

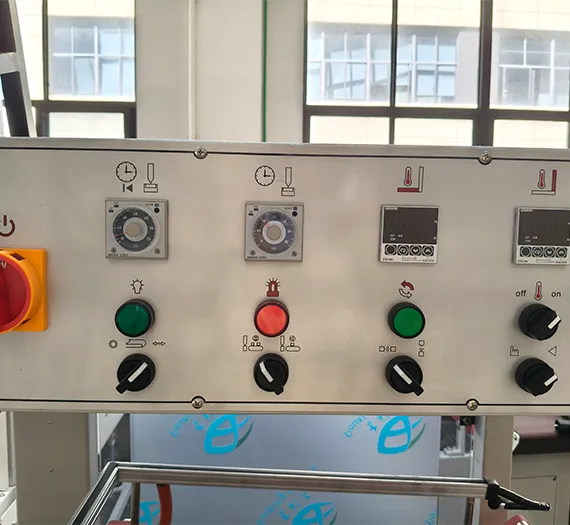

Original ''Omron'' digital display temperature controller with built-in PID function, the sealing knife temperature is extremely sensitive and accurate, temperature is adjustable.

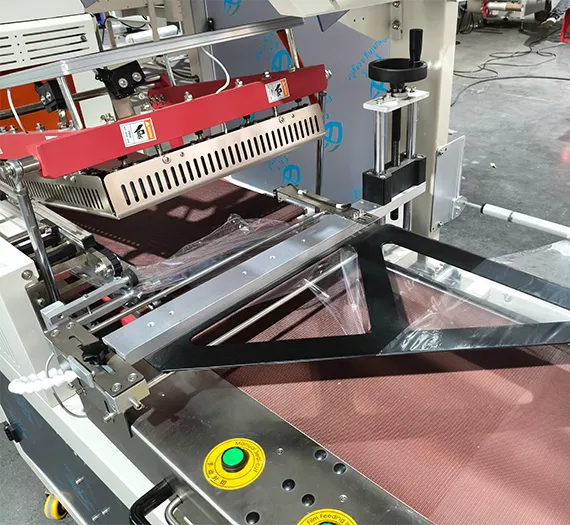

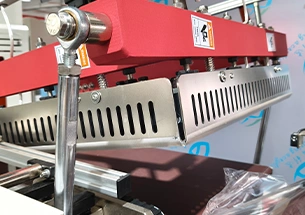

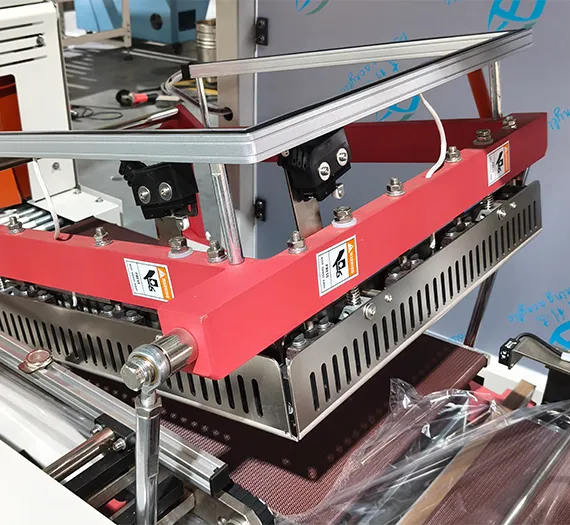

The sealing knife adopts DuPont Teflon-coated anti-stick and high-temperature-resistant aluminum alloy; the sealing line will not crack.

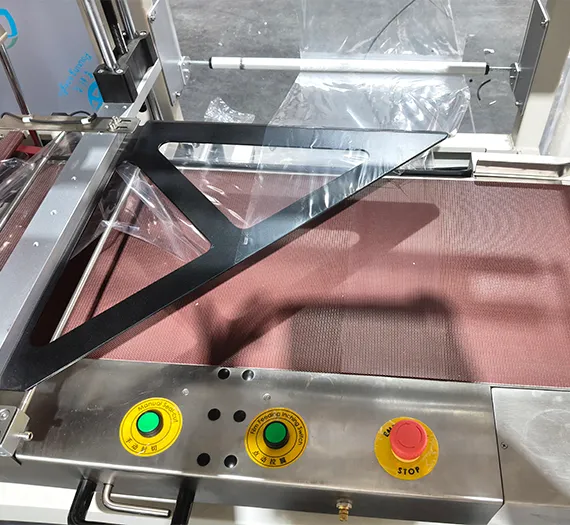

According to the different products, the machine is equipped with detection photoelectric devices, with one group for horizontal and vertical detection, which is convenient for switching and selection.

Using Panasonic, SMC, Schneider, and other imported electrical brands, machines with high quality and long operating life.

The heat shrink tunnel has a visible window, through which the product shrinkage can be observed in the furnace at any time.

The shrinkage furnace has double fans, and the air is discharged from the bottom. The temperature inside the furnace is uniform, and the shrinkage effect is beautiful and smooth.

Suitable products?

Design for small regular goods: cartons, cosmetic boxes, tableware, medicine boxes, photo frames, gift boxes with full film wrapping; sleeve machine only wraps the side, pillow for long items, L-type focuses on small full-enclosed packages.

Production capacity & speed?

Standard 15-25pcs/min, works with manual feeding or a small auto feeding line.

Compatible shrink film?

POF center folded film (15-30μm) as the main option, thin PE available; PVC film forbidden for corrosive fume damaging cutter coating.

Total power & customizable export voltage?

Total power 13.5KW, standard 220V, 1 phase for sealing and cutting machine, 380V, 3 phase for shrink tunnel. With a CE certificate for customs clearance.

Free sample test & customization lead time?

Free sample wrapping test; small modification:3~5 working days, in-stock machine delivery within 1~3 days.

Compressed air needed?

Clean air 0.5MPa required

Packaged film bulges with trapped air?

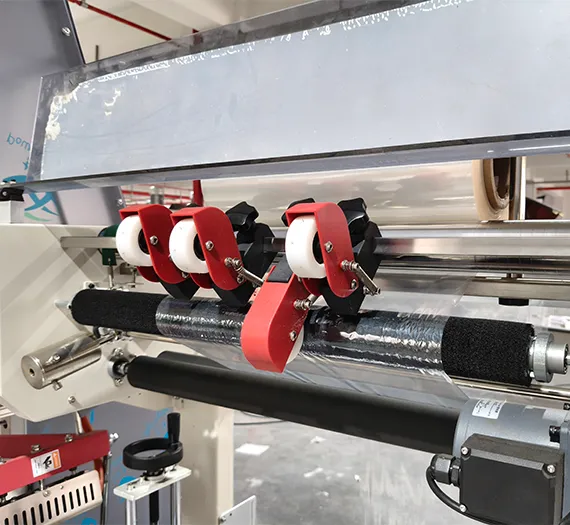

1. Fit the needle roller to punch exhaust holes.
2. Slow down conveyor speed.
3. Raise the front tunnel temperature for air exhaust.

Wrinkled loose wrapping film?

Low tunnel temp / over-fast feeding → heat up or slow down; uneven film tension → adjust roller spring; oversized film → switch to a narrower POF roll.

Film runs off track & uneven L-sealing edge?

Center fix film roll; balance left-right tension; straighten feeding fence; recalibrate photo eye position & sensitivity.

Seal splits/burnt or cutter sticky with film?

Split seal: increase cutter temperature & cylinder air pressure; Burnt seal: lower temp or speed up machine; Sticky cutter: replace worn Teflon anti-stick tape.

Cutter accidentally cuts the product corner?

Adjust the cutter height handwheel; realign the feeding limiting baffle; fine-tune the cylinder down stroke.

Partial tunnel, no heating / unstable temperature?

Replace broken heating tube; fix loose thermocouple or faulty solid-state relay.

Sealing cylinder stuck with abnormal noise?

Drain water from the air filter; add lubricant for the cylinder; clear film scraps inside the guide rail.

Film cracks after shrinking?

Reduce overheat of the relevant tunnel zone; change the qualified POF film; add protection for sharp item edges.

Regular maintenance checklist?

Daily: Clean cutter glue residue & belt scraps, wipe photo sensor;
Weekly: Grease chains & guide rails, drain air filter;
Monthly: Tighten all bolts, clean carbon dust inside the tunnel, and check blower operation.

CE & global voltage customization?

CE available, custom 110V/220V/415V industrial voltage for the global market.

Export packing?

Fumigated solid wooden case for separate packing, manual, spare parts & tools attached.
