Automatic High Speed Box Motion Side Sealing Shrink Packing Machine

Capable of packaging large products,
long products, or multiple rows of products side-by-side.
Utilizes a constant-temperature alloy cutting blade.
Waste rate: ≤ 0.5%.

Get A Quote

Automatic High Speed Box Motion Side Sealing Shrink Packing Machine

Series Model Overview

Single or group packaging of boxes, tins, hardware, food, pharmaceutical, book, notebook, CD, glass, paper towel, paper roll, card, photo frame, aluminum profile, wood product, pesticide bottle, and other products.

Equipped with 5 servo controls, it runs stably, is easy to operate, and has beautiful sealing and cutting.

RGL-5525+RT-5030

Model	RGL-5525 Sealing & Cutting Machine
Sealing Type	Full Cover Side Sealing Machine
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	60-100 Packs per Minute (Depends on Product Size)
Sealing Height	0-130MM;70-200MM;120-250MM
Packing Width	100-400MM
Packing Length	Unlimited
Packing Size	Width+Height≤550mm
Film Type	Center Folded POF Film
Max Film Roll Size	750MM (Width) X 280MM (Outer Diameter)
Working Height	850MM(Adjustable）
Sealing Machine Dimensions	260015001550MM
Sealing Machine Weight	1505KG
Power	8KW
Sealing Machine Feeding Conveyor Width	445MM
Sealing Blade Width	630MM
Sealing Machine Feed Conveying Platform Length	1040MM
Sealing Machine Feed Conveying Platform Width	500MM
Machine Material	Carbon Steel

Model	RT-5030 Shrink Tunnel

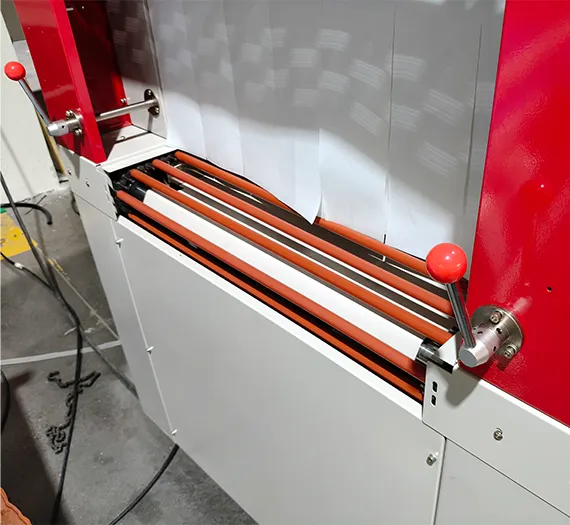

Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	12KW
Tunnel Oven Size	2000500300MM
Working Height	850MM(Adjustable）
Machine Material	Carbon Steel
Tunnel Machine Dimensions	25507101330MM
Tunnel Weight	480KG

Get A Quote

Key features & Advantages

Advantages	RYMACH	Others
1. Sealing & Cutting Structure	Reciprocating transverse sealing technology ensures uninterrupted transportation throughout the entire process, improving efficiency.	Intermittent sealing and cutting require a pause for positioning, resulting in low efficiency.

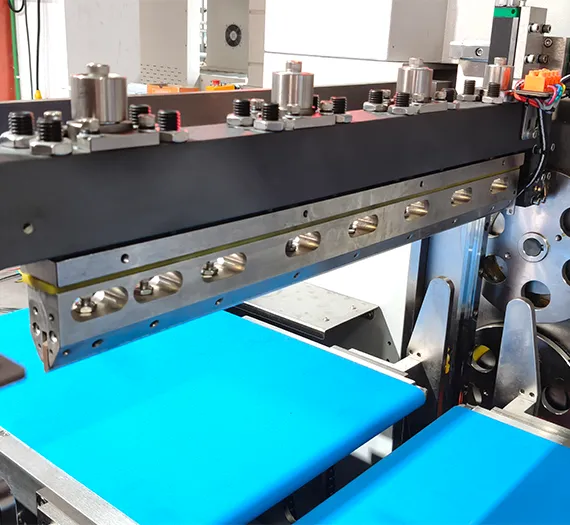

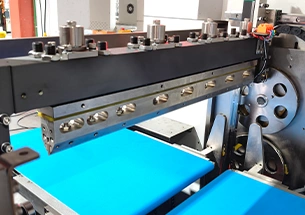

2. Sealing Cutter	Alloy + PTFE coating, high temperature resistance without film, smooth and burr-free incision, and low maintenance frequency.	An ordinary carbon steel knife, prone to sticking, smoking, and a short lifespan.
3. Drives System	5 Servo motors control, positioning accuracy, precise sealing and cutting, no cutting deviation, no waste products.	Two servo or variable frequency + cylinder drive.
4. Product Adjustable	Handwheel adjustment, high efficiency in switching between multiple specifications.	Multi-screw/component adjustment, difficult to replace products.
5. Maintianess	Support remote program upgrades and remote fault diagnosis, greatly improving after-sales response efficiency.	No remote function, the fault needs to be checked on-site.
6. After-Sale Service	1 year warranty, lifetime maintenance; Online technical training+remote diagnosis; Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Application Type

The Ruiyuan Automatic High Speed Box Motion Side Sealing Shrink Packing Machine is suitable for the single-item or multi-item combination packaging of the following products:

Book

Box

Maxi Roll

Customized Applications

Would you like to speak to our specialists?

Our team is here to provide you with expert advice and guidancetailored to your specific needs.

Get in touch

Optional Equipment

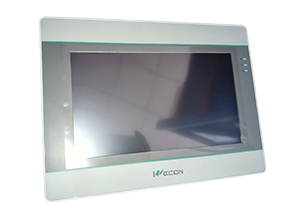

Color Touch Screen

Temperature Controller

Heating Tube

Thermocouple

Sealing Cutter

Speed Controller

Servo Motor

Servo Motor Driven

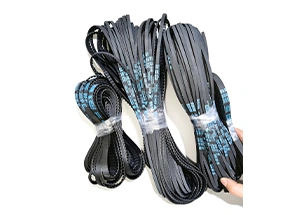

Timing Belt

Product Advantages

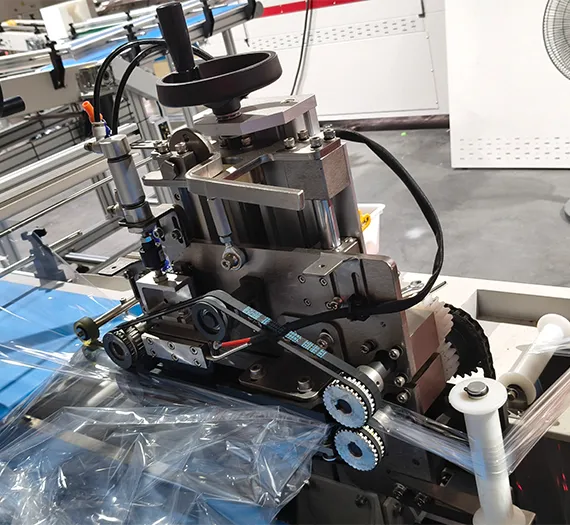

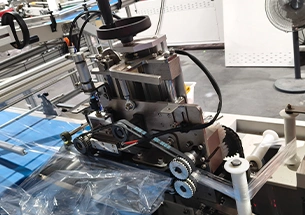

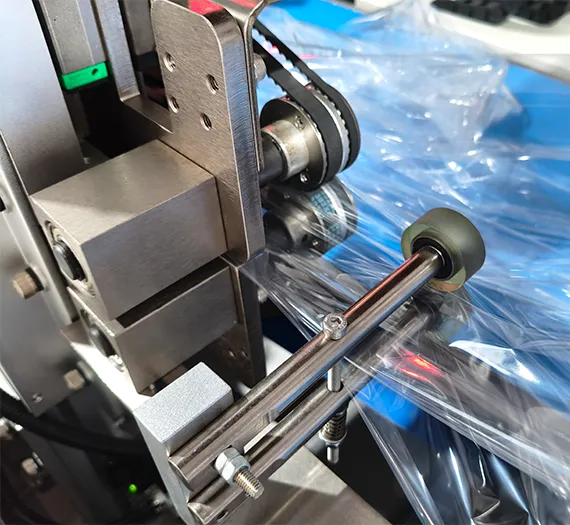

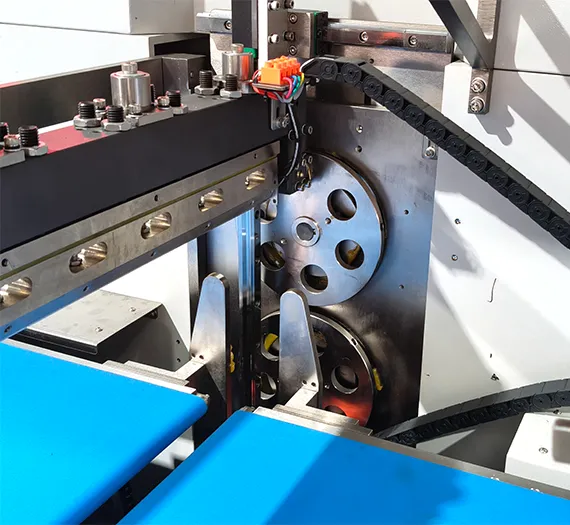

Adopts advanced side sealing reciprocating horizontal sealer technology, the products arecontinuously sealing without stopping, it can ensure the film bag cut without splitting.

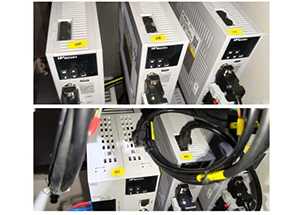

Five servo motors controlling, the machine can work stable in the process of high-speed operation, no sliding and shifting phenomenon.

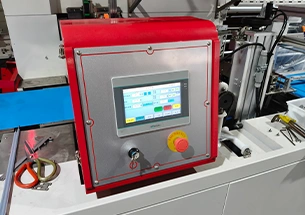

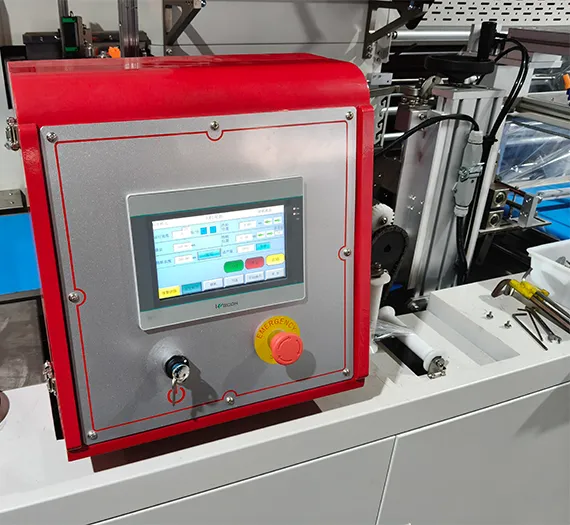

The operation interface adopts PLC touch screen, various setting operations can be completedeasily, also the product program setting data can be stored in advance, only need to adjust thestored data when packaging different products and requirements, simple and convenient.

According to different products requirements, the machine can be configured with feeding conveyingsystem and connected with production line to realize automatic packaging and save labor cost.

The heat shrink tunnel machine adopts advanced lower air transport technology, conveying. air transport motor, frequency control, wind, wind direction, wind angle can be adjusted.

The tunnel furnace cavity has a visiable window, the heat shrinkage process of the product in thefurnace cavity can be observed, and the upper part of the furnace cavity can be opened, easy toclean and maintain.
