Automaitc Sleeve Sealer Shrink Packing Machine

RX-880+RT-6040

RX-1000+RT-8060

Automaitc Sleeve Sealer Shrink Packing Machine (Straight Line Infeed Conveyor)

Shrink bundle wrapping for tray products such as water bottles, milk cans, beer bottles, as well as logistics foam boxes, cartons, cable coils, tyres, tapes, and cylindrical products.

Fully automatic feeding, sealing,
and cutting, shrink integrated packaging
PLC programmable control system
Special durable alloy sealing knife
Double internal air circulation shrinkage furnace

RX-880P+RT-6040

RX-1000P+RT-8060

Automaitc Sleeve Sealer Shrink Wrapping Machine (Bottles Group Packaging)

Single row or multi-row feeding heat shrinkable packaging for mineral water bottles, beverage bottles, beer bottles, and other bottles. It can be connected with a filling machine and a labeling machine.

Advantages	RYMACH	Others
1. Control Component	Siemens touch screen and PLC, with fast response speed, strong anti-interference ability, and support for multilingual switching.	Domestic Brand
2. Sealing Cutter	Teflon-coated steel knife, firmly sealed without cracking, an anti-sticking knife.	An ordinary carbon steel knife is easy to stick and has a short lifespan.
3. Electrical Components	Relays, AC contactors, etc., are made by Schneider, with long service life and low failure rate.	Use the domestic Chint brand.
6. After-Sale Service	1 year warranty,lifetime maintenance; Online technical training+remote diagnosis;Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Beverage

Carton

Boxes

Little Bottles

Mineral Water

Would you like to speak to our specialists?

Our team is here to provide you with expert advice and guidancetailored to your specific needs.

Get in touch

Product Overview

Single row or multi-row feeding heat shrinkable packaging for mineral water bottles, beverage bottles, beer bottles, and other bottles. It can be connected with a filling machine and a labeling machine.

Designed for bottle packaging, this machine is connected with other production lines to automatically feed - wrap film - seal, and cut - shrink - cool, automatic packaging without manual operation. It can do 6 bottles (2*3), 9 bottles (3×3), 12 bottles (3×4), 24 bottles (4×6), and other packaging forms. (Depends on the bottle's dimensions)

The worm gear reducer is used to ensure stable feeding and film feeding without jitter.

''PLC'' programmable controller, modular design, can change different bottle shapes, and can wrap quickly.

The automatic feeding device can be selected according to the different bottle shapes, and multi-bottle feeding can be customized to improve the packaging speed.

The feeding conveyor belt can be designed as left-side feeding or right-side feeding according to the needs of the site.

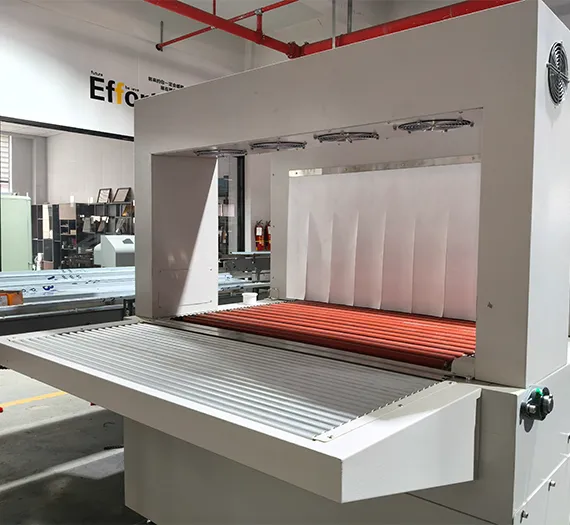

Double internal air circulation system, the hot air in the furnace cavity is evenly distributed, and the shrinkage effect is more beautiful.

What products fit this sleeve wrapper?

Double-layer up&down film sealing structure, designed for collective packing: bottled water case, cans bundle, beer carton, daily chemical grouped goods for multi-piece bulk wrapping; the pillow machine is for single small items.

Production speed & output capacity?

Standard:12-15packs/min, available to connect automatic carton loading & palletizing line.

Compatible shrink film?

Mainly PE heavy-duty shrink film(30~100μm)

Free sample test & customization lead time?

Free sample test in the factory; customized modification:30 working days, in-stock machine delivery within 7 days.

Auxiliary equipment required after delivery?

Clean compressed air 0.5MPa needed; our technician provides 1~2 days on-site installation & operator training; optional feeding conveyor & limiting baffle.

Changeover time for different carton sizes?

3-5 mins for same-series size changing; PLC touch screen saves multiple parameter recipes to adjust film frame.

Film bulges with trapped air after shrinking?

1. Add a pin roller to punch exhaust holes in the film.
2. Slow down feeding speed.
3. Raise front tunnel temperature for full air exhaust.

Wrinkled loose wrapping film?

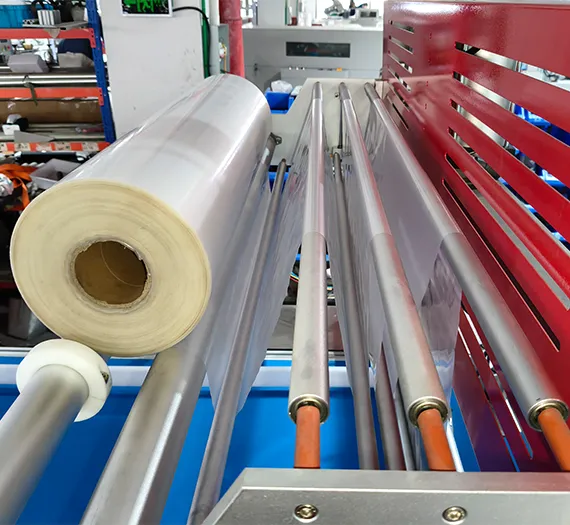

Low tunnel temp or over-fast feeding→raise temp/reduce speed; uneven film roller tension→adjust tension spring; oversized film→switch narrower, matched PE roll.

Film runs off track & uneven sealing edge?

1. Fix the film roll at the center.
2. Adjust left-right tension.
3. Straighten carton limiting fence.
4. Recalibrate photo eye position & sensitivity.

Seam splits/burnt or cutter sticky with film?

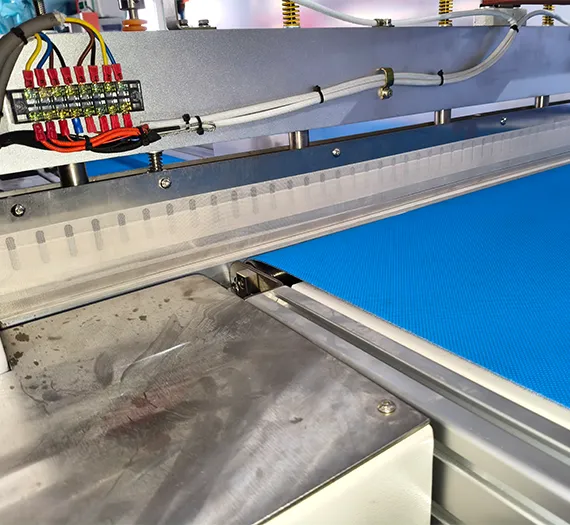

Split seal: increase sealing temp & air cylinder pressure; Burnt seal: lower temp or speed up machine; Sticky cutter: replace worn Teflon anti-stick tape.

Cutting blade damages the carton accidentally?

Adjust the cutter lifting height screw; straighten the feeding guide; revise the servo cutting timing on the HMI panel.

Partial tunnel, no heating or unstable temperature?

Replace broken heating tube; fix loose thermocouple probe or faulty solid-state relay.

Clamping cylinder stuck with abnormal noise?

Drain water from the air filter; add lubricant to the cylinder; clear film scraps stuck in the guide rail.

Film cracks after thermal shrinking?

Reduce overheat of the corresponding tunnel zone; change the qualified PE film; add edge protection for sharp carton corners.

Regular maintenance checklist?

• Daily: Clean cutter residue & conveyor waste, wipe photo sensor lens.
• Weekly: Lubricate chains & guide rails with high-temp grease, drain air filter.
• Monthly: Tighten all bolts, remove carbon dust inside the shrink tunnel, and inspect blower status.

Warranty policy?

12-month full machine warranty (excludes man-made damage & consumables), lifelong cost-price spare parts supply, overseas remote video repair guidance available.

Preheating time under cold weather below 10℃?

Preheat 30~40 mins, heat tunnel by gradient temperature to avoid heater damage from sudden temperature change.

CE certification & global voltage customization?

CE approval available, custom 110V/220V/415V industrial voltage for worldwide market clearance.

Export packaging solution?

Fumigated solid wooden case for separate packing of main unit & shrink tunnel, operation manual, trial spare parts & tools included.
