Automatic Rear Cutter Side Sealing Shrink Wrapping Machine

RG-730

Model	RG-730 Sealing & Cutting Machine
Sealing Type	Full Cover Side Sealing Machine
Installed Power	220V; 50-60Hz; 1Phase
Packing Capacity	15-35 packs per minute (depends on product size)
Sealing Height	20-350 MM
Packing Width	250-600MM
Packing Length	Unlimited
Packing Size	Width+Height≤830mm
Film Type	Center-Folded POF Film
Max Film Roll Size	1000MM (Width) X 280MM (Outer Diameter)
Working Height	780-850 MM
Sealing Machine Dimensions	218016501435MM
Power	5.5KW
Machine Material	Carbon Steel

Model	Shrink Tunnel
Conveyor	Chains with Rotating Silicon Coated Rods/ Mesh Belt
Installed Power	380V; 50-60Hz; 3Phase
Power	12KW
Tunnel Oven Size	1500600300MM

Get A Quote

Advantages	Wenzhou Ruiyuan's	Others
1. Control Component	Equipped with an imported Siemens PLC and a high-definition touch screen, with multi-language switching, one click parameter saving.	Most of them use domestically produced low-end PLCs/microcontrollers and do not even have independent touch screens, relying on knob adjustment.

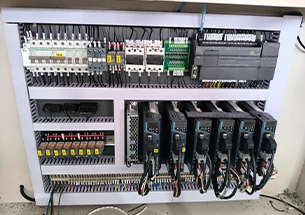

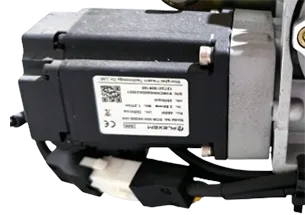

2. Electrical Components	Full servo configuration, leading in both speed and accuracy; Relays, AC contactors, etc., are made of Schneider, with long service life and low failure rate.	Use the domestic Chint brand.
3. Packing Range	Horizontal sealing knife rear (side sealing in front, horizontal sealing in back), high products (≤ 350mm) do not run film or shift; The sealing line is straight, without wrinkles or breaks.	Front blade/side seal rear, high parts are prone to warping, film running, and sealing deviation.
4. Sealing Cutter	Alloy steel knife, durable and anti-stick, ensures a smooth and firm; easy to clean and replace the cutter.	Ordinary carbon steel+thin coating, easy to stick to the knife.
5. Shrink Tunnel	A 2500mm long visible window tunnel, it contains 3 layers of insulation cotton with constant temperature control, which can save 20% of electricity.	Single temperature zone+single motor, large temperature difference, poor corner shrinkage, and easy wrinkling; Thin insulation layer, fast heat dissipation, high power consumption.
6. After-Sale Service	1 year warranty,lifetime maintenance; Online technical training+remote diagnosis;Attached product introduction.	Only a 1-year warranty, some do not provide after-sales service.

Product Overview

Bigger and longer products such as: floor boards, wallpaper rolls, aluminum foil rolls, maxi rolls, large cartons, ladder, etc.

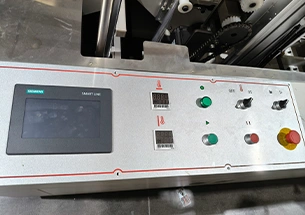

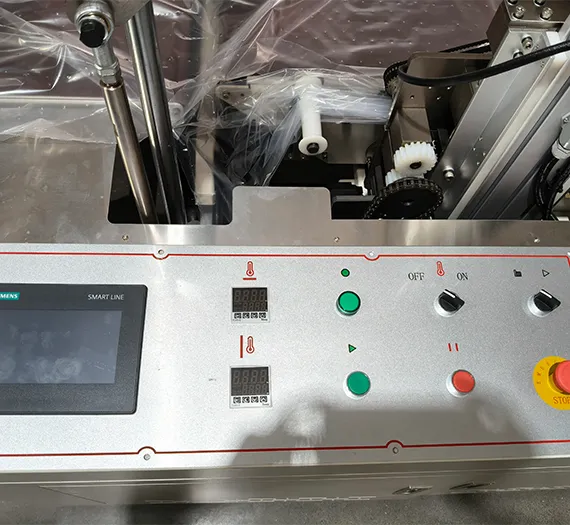

PLC touch screen control, operation can be done on the screen, the machine has high production efficiency, and is easy to use.

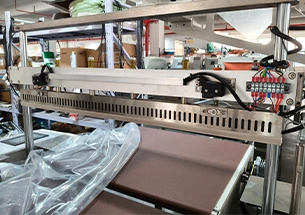

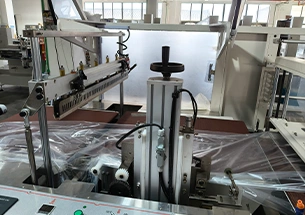

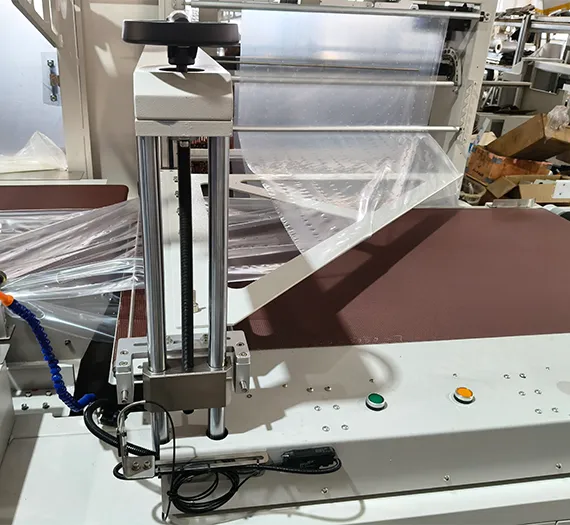

Side sealing knife can be sealed continuously, the product packaging length is infinite, and the height of the side sealing knife can be adjusted by hand wheel.

An optional color film positioning function is available.

Infeed conveyor and output conveyor are available according to product needs.

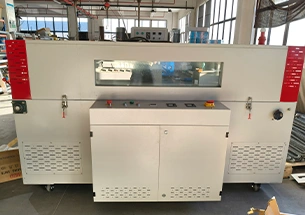

The heat shrink tunnel has a visible window through which the product shrinkage can be observed in the furnace at any time.

The hot air circulation shrinkage tunnel makes the product's shrinkage effect flat and beautiful.

Product application?

This machine can package products up to 600mm wide and 350mm high, with no limit on length. Suitable for multiple items in a row: tissue roll combination bags, individual bags, long boards, and other daily necessities. Multiple items can be fed side by side continuously.

Production running speed & output?

Depends on product size, compatible with a full-automatic upstream sorting production line.

Compatible shrink film?

POF center folded shrink film(15-30μm) as the primary choice, thin PE film available(need to change PE sealing cutter)

Total power & customizable export voltage?

Total power 17.5KW, standard sealing machine is 220V 1-phase power, shrink tunnel is 380V, 3-phase; custom 220V/415V/440V available, CE certificate supplied for customs clearance.

Free sample test & customization lead time?

Free sample packing test at our factory; customized modification:30 working days, in-stock machine delivered within 7 days.

Is compressed air required for the machine to run?

Clean compressed air(0.5MPa) is needed.

Changeover time for different product sizes?

6~15 mins for same-series product replacement; PLC touch screen stores multiple preset parameters for one-click adjustment of bag length, packing speed, and product length with servo motor.

Wrapped film bulges with trapped air inside?

1. Install a pin roller to punch exhaust holes in the film.
2. Slow down conveyor feeding speed.
3. Slightly raise the front tunnel temperature for complete air exhaust.

Wrinkled loose shrink film after heating?

Low tunnel temperature or over-fast feeding → increase temp or reduce speed; uneven film roller tension → adjust tension spring; oversized film width → replace matched narrow film roll.

Film deviates & uneven side sealing edge?

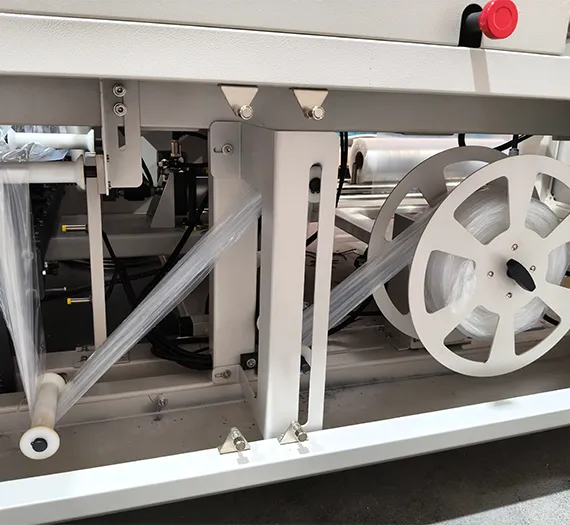

Fix film roll in central position; balance left-right roller tension; straighten feeding limiting fence; recalibrate photo eye position & sensitivity.

Seam splits/burnt or cutter sticks to wrapping film?

Split seal: increase cutter temperature & cylinder air pressure; Burnt seal: lower heating temp or speed up machine; Sticky cutter: replace worn Teflon anti-stick adhesive tape.

Rear cutter accidentally cuts product corners?

Modify servo cutter stroke parameter on HMI; readjust feeding baffle spacing; fine-tune cutter lifting screw height.

Partial shrink tunnel, no heating or unstable temperature?

Replace broken heating tube; fix loose thermocouple probe or defective solid-state relay.

The rear cutter mechanism is stuck with an abnormal running noise?

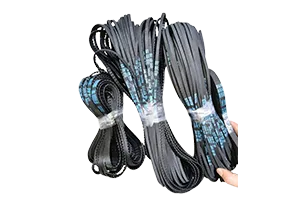

Clean film scraps stuck on the chain & guide rail; fill high-temperature grease; tighten loose servo timing belt.

Film cracks after heat shrinking?

Reduce overheating of the corresponding tunnel zone; switch to qualified POF raw film; add protective cover for sharp product edges.

Regular maintenance checklist?

Daily: Clean cutter glue residue & conveyor scraps, wipe photo sensor lens.
Weekly: Lubricate guide rail & chain, drain accumulated water from air filter.
Monthly: Tighten all machine bolts, clear carbon dust inside the shrink tunnel, and inspect the blower & motor working status.

Warranty regulation & spare part supply?

12-month whole machine free warranty (excluding artificial damage & consumables), lifelong cost-price spare parts supply, overseas remote video repair guidance available.

CE certification & global voltage customization?

CE approval available, custom 110V/220V/415V worldwide industrial voltage for global market clearance.

Export packaging solution?

Fumigated solid wooden case for separated packing of main machine & shrink tunnel, operation manual, trial spare parts, and standard tools enclosed.
